85314BGI-01LF - Renesas Electronics

Description: The 85314I-01 is a low skew, high performance 1-to-5 Differential-to-2.5V/3.3V LVPECL Fanout Buffer.The 85314I-01 has two selectable clock inputs. The CLK0, nCLK0 pair can accept most standarddifferential input levels. The single-ended CLK1 can accept LVCMOS or LVTTL input levels. The clock enable is internally synchronized to eliminate runt clock pulses on the outputs during asynchronous assertion/deassertion of the clockenable pin. Guaranteed output and part-to-part skew characteristics make the 85314I-01

Download 85314BGI-01LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

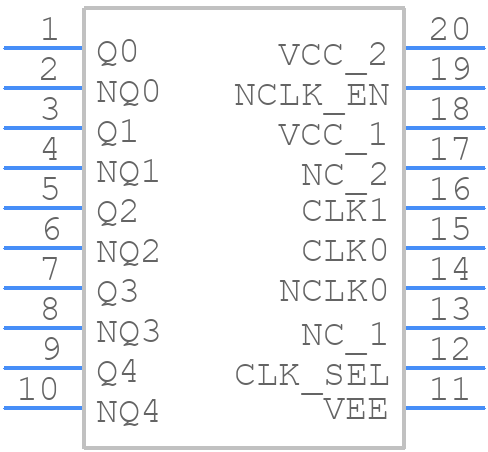

85314BGI-01LF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
85314BGI-01LF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PGG20
click to zoom
3D Models
85314BGI-01LF - Renesas Electronics - 3D model - Small Outline Packages - PGG20
click to zoom

85314BGI-01LF Details

  • Manufacturer Part Number:

    85314BGI-01LF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Manufacturer Package Code:

    PGG20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    85314

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Number of True Outputs:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    1.8 ns

  • Propagation Delay (tpd):

    1.8 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.03 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.8 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

85314BGI-01LF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout and thermal management guide in their application notes. It's essential to follow these guidelines to ensure optimal performance, reduce thermal resistance, and prevent overheating.
  • Renesas recommends using a dedicated power management IC (PMIC) or a voltage regulator to ensure proper power sequencing and voltage regulation. The datasheet provides guidelines for power-up and power-down sequences.
  • Renesas provides EMI and RFI mitigation guidelines in their application notes. It's essential to follow proper PCB layout, shielding, and filtering techniques to minimize electromagnetic interference and radio-frequency interference.
  • Renesas provides debugging tools and software development kits (SDKs) to help troubleshoot and debug issues. It's essential to follow the recommended debugging procedures and use the provided tools to identify and resolve issues efficiently.
  • Renesas ensures that the 85314BGI-01LF meets or exceeds industry standards for reliability and quality, such as AEC-Q100 and ISO/TS 16949. The device is designed to meet the requirements of automotive and industrial applications.
