Description:The 85320I is a LVCMOS / LVTTL-to-Differential 3.3V, 2.5V LVPECL translator. The 85320I has a single ended clock input. The single ended clock input accepts LVCMOS or LVTTL input levels and translates them to 3.3V or 2.5V LVPECL levels. The small outline 8-pin SOIC package makes this device ideal for applications where space, high performance and low power are important.
Renesas provides a recommended PCB layout guide in their application note (R01AN2732EU0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
Renesas recommends a specific power sequencing scheme in their application note (R01AN2732EU0100) to ensure proper device operation. The sequence involves powering up the VCC, VCCIO, and VREF pins in a specific order.
Renesas recommends using 0.1uF to 1uF decoupling capacitors with a voltage rating of 10V or higher, placed as close as possible to the power pins (VCC, VCCIO, and VREF) to minimize noise and ensure stable operation.
Renesas provides a JTAG interface specification in their datasheet, which includes information on signal levels, clock frequency, and protocol. Engineers can use this information to develop custom test fixtures or use third-party JTAG test equipment.
The thermal resistance values for the 85320AMILFT package are not explicitly stated in the datasheet. However, Renesas provides a thermal model in their application note (R01AN2732EU0100) which includes thermal resistance values for the package, allowing engineers to estimate junction temperatures and design for thermal management.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
85320AMILFT Overview

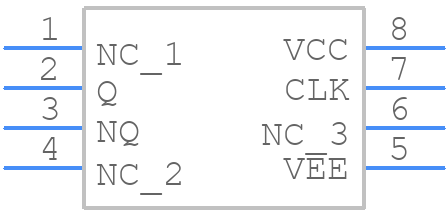

Use the download button to access the 85320AMILFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 85320,
or try a keyword search, such as Level Translators
