853S006AGILF - Renesas Electronics

Description: The 853S006I is a low skew, high performance 1-to-6 Differential-to-2.5V/3.3V LVPECL/ECL Fanout Buffer. The 853S006I is characterized to operate from either a 2.5V or a 3.3V power supply. Guaranteed output and part-to-part skew characteristics make the 853S006I ideal for those clock distribution applications demanding well defined performance and repeatability.

Download 853S006AGILF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

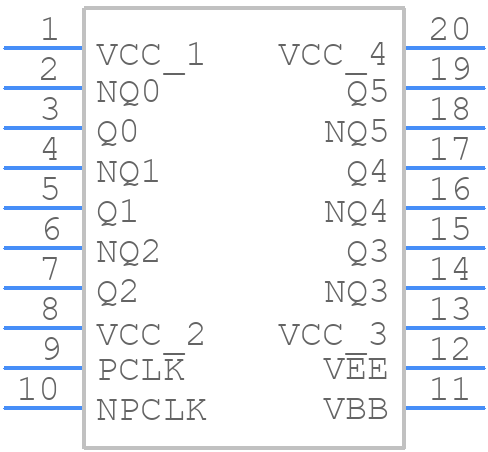

853S006AGILF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
853S006AGILF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PGG20
click to zoom
3D Models
853S006AGILF - Renesas Electronics - 3D model - Small Outline Packages - PGG20
click to zoom

853S006AGILF Details

  • Manufacturer Part Number:

    853S006AGILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Manufacturer Package Code:

    PGG20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Family:

    853S

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Number of True Outputs:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    0.55 ns

  • Propagation Delay (tpd):

    0.55 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • fmax-Min:

    2000 MHz

853S006AGILF Frequently Asked Questions (FAQs)

  • Renesas provides a reference design guide for the 853S006AGILF, which includes recommendations for PCB layout, thermal management, and component placement. It's essential to follow these guidelines to ensure optimal performance, thermal stability, and reduced electromagnetic interference (EMI).
  • The 853S006AGILF requires a specific power sequencing and voltage regulation scheme to ensure proper operation. Renesas recommends using a dedicated power management IC (PMIC) or a custom power supply design that meets the device's power requirements. The datasheet provides guidelines for power sequencing and voltage regulation, but additional documentation and application notes may be necessary for a specific implementation.
  • The 853S006AGILF has various internal registers and configuration options that require proper setting for optimal performance. Renesas provides a register description document and application notes that detail the recommended settings for specific use cases. It's essential to consult these resources and follow the recommended settings to ensure the device operates as intended.
  • Renesas offers a range of debugging tools and software, including the Renesas Debug Tool and the e² studio integrated development environment (IDE). These tools provide features like code debugging, register access, and signal tracing to help identify and resolve issues with the 853S006AGILF. Additionally, Renesas provides application notes and technical support resources to aid in troubleshooting and debugging.
  • The 853S006AGILF is designed to operate within specific environmental and operating conditions, including temperature, humidity, and vibration. Renesas provides detailed specifications for these conditions in the datasheet and other documentation. It's essential to ensure that the device operates within these specified conditions to maintain reliability and performance.
