853S024AYLFT - Renesas Electronics

Description: The 853S024 is a low skew, 1-to-24 Differential-to-3.3V, 2.5V LVPECL Fanout Buffer. The PCLK, nPCLK pair can accept most standard differential input levels. The 853S024 is characterized to operate from either a 3.3V or a 2.5V power supply. Guaranteed output skew characteristics make the 853S024 ideal for those clock distribution applications demanding well defined performance and repeatability.

Download 853S024AYLFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
853S024AYLFT - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

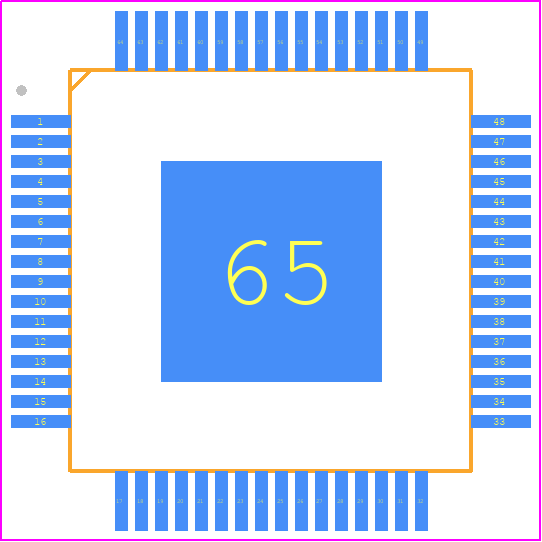

853S024AYLFT - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - 64 lead tqfp
click to zoom
3D Models
853S024AYLFT - Renesas Electronics - 3D model - Quad Flat Packages - 64 lead tqfp
click to zoom

853S024AYLFT Details

  • Manufacturer Part Number:

    853S024AYLFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TQFP

  • Package Description:

    TQFP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    EDG64P2

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    TIN
