853S202AYILF - Renesas Electronics

Description: The 853S202I is a 12:2 Differential-to-LVPECL Clock Multiplexer which can operate up to 3GHz. The 853S202I has twelve select-able differential clock inputs, any of which can be independently rout-ed to either of the two LVDS outputs. The CLKx, nCLKx input pairs can accept LVPECL or LVDS levels. The fully differential architecture and low propagation delay make it ideal for use in clock distribution circuits.

Download 853S202AYILF Model

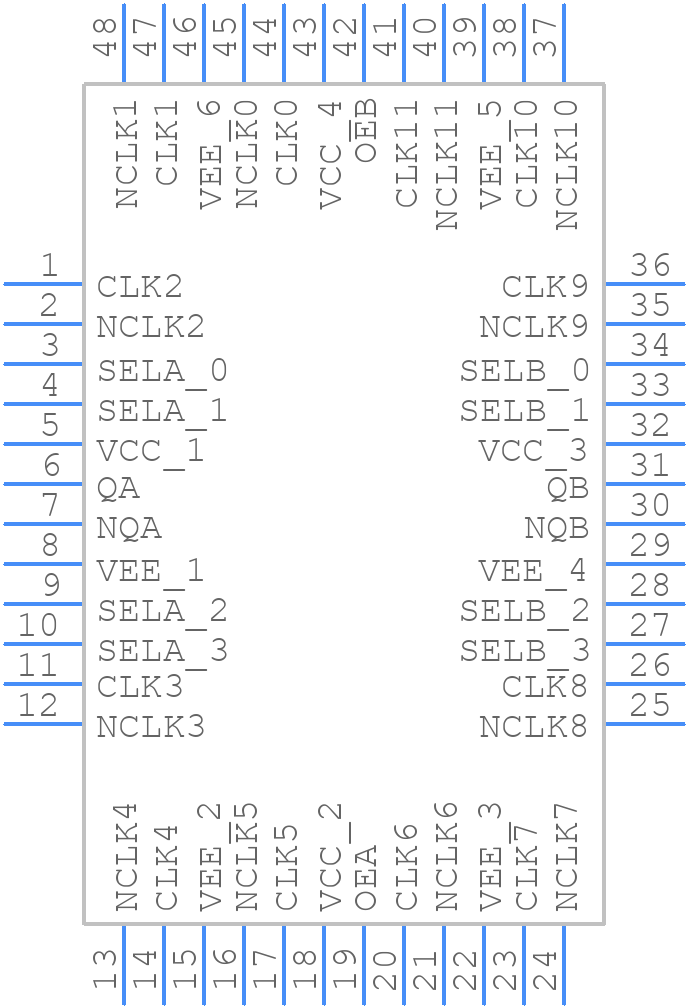

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
853S202AYILF - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PRG48__
click to zoom
3D Models
853S202AYILF - Renesas Electronics  - 3D model - Quad Flat Packages - PRG48__
click to zoom

853S202AYILF Details

  • Manufacturer Part Number:

    853S202AYILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TQFP

  • Package Description:

    QFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    PRG48

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Additional Feature:

    IT ALSO OPERATES AT 3.3 V

  • Family:

    853S

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    95 mA

  • Prop. Delay@Nom-Sup:

    1.15 ns

  • Propagation Delay (tpd):

    1.15 ns

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • fmax-Min:

    3000 MHz

853S202AYILF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) documents, which can be found on their website. The guide includes thermal vias, heat sink recommendations, and PCB layer stack-up suggestions to ensure optimal thermal performance.
  • Renesas recommends using an external overcurrent protection circuit, such as a fuse or a dedicated overcurrent protection IC, to prevent damage to the device. The datasheet provides guidelines for selecting the appropriate overcurrent protection component.
  • The recommended power-up sequence is to apply the power supply voltage (VCC) first, followed by the input voltage (VIN). This ensures that the internal voltage regulators are properly initialized and that the device operates within its specified parameters.
  • Renesas provides a troubleshooting guide in their application note (APN) documents, which covers common issues, such as output voltage errors, overtemperature shutdown, and input voltage errors. The guide also provides guidance on using oscilloscopes and other diagnostic tools to identify and resolve issues.
  • The maximum operating temperature range for the 853S202AYILF is -40°C to +125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade at higher temperatures, and proper thermal management is crucial to ensure optimal operation.
