The recommended torque for the screw terminals is typically between 0.5 to 1.5 in-lbs (0.056 to 0.169 Nm), but it's best to consult the manufacturer's application notes or contact their technical support for specific guidance.
Yes, the 854-22-004-40-601101 connectors are designed to withstand vibration and are suitable for applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure fastening to prevent connector damage or disconnection.
The connectors are rated for operation up to 125°C (257°F), but it's crucial to consider the specific application and environmental conditions. Prolonged exposure to high temperatures may affect the connector's performance and lifespan. Consult the manufacturer's documentation or contact their technical support for guidance on high-temperature applications.
Yes, the 854-22-004-40-601101 connectors are designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems. However, it's recommended to consult with the manufacturer or a qualified assembly partner to ensure compatibility and optimal assembly processes.
The lead time for delivery of the 854-22-004-40-601101 connectors can vary depending on the quantity, region, and availability. Typically, the lead time ranges from 2-6 weeks, but it's best to check with the manufacturer or authorized distributors for the most up-to-date and accurate lead time information.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
854-22-004-40-601101 Overview

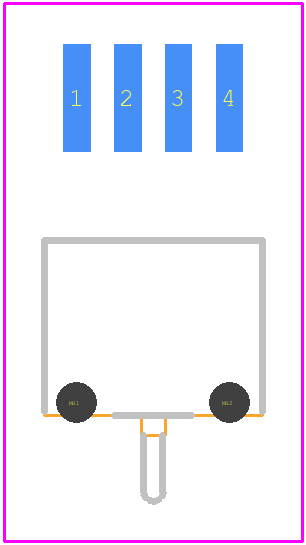

Use the download button to access the 854-22-004-40-601101 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 854-2,
or try a keyword search, such as Headers and Edge Type Connectors
