The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections without damaging the terminals.
Yes, the 854-22-014-20-601101 connectors are designed to withstand high-vibration environments, making them suitable for use in industrial, automotive, and aerospace applications.
The connectors are rated for operation in temperatures ranging from -55°C to 150°C and can withstand humid environments, but it's essential to follow proper sealing and insulation techniques to ensure reliable performance.
The 854-22-014-20-601101 connectors are designed to accommodate wire sizes ranging from 20 AWG to 14 AWG (0.5 mm² to 2.5 mm²).
Yes, the 854-22-014-20-601101 connectors are RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making them suitable for use in global markets.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
854-22-014-20-601101 Overview

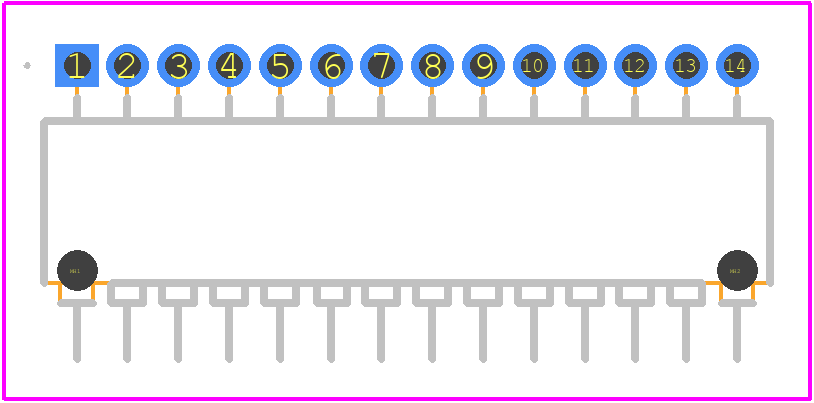

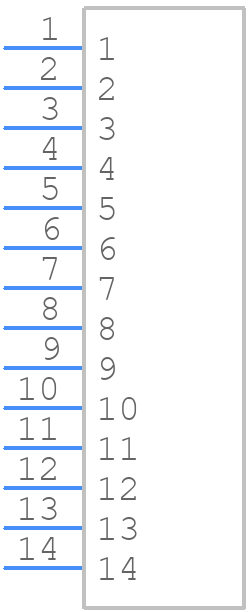

Use the download button to access the 854-22-014-20-601101 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 854-2,
or try a keyword search, such as Headers and Edge Type Connectors
