854104AGILFT - Renesas Electronics

Description: The 854104I is a low skew, high performance 1-to-4 Differential-to-LVDS Clock Fanout Buffer. Utilizing Low Voltage Differential Signaling (LVDS), the 854104I provides a low power, low noise, solution for distributing clock signals over controlled impedances of 100?. The 854104I accepts a differential input level and translates it to LVDS output levels. Guaranteed output and part-to-part skew characteristics make the 854104I ideal for those applications demanding well defined performance and repeatability.

Download 854104AGILFT Model

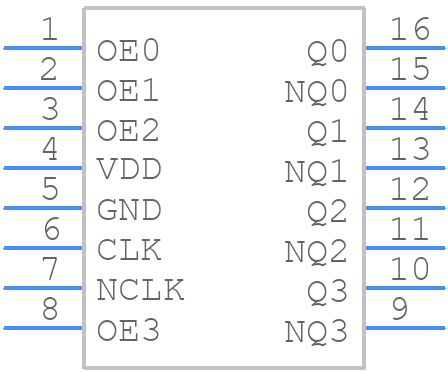

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
854104AGILFT - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PGG16 (TSSOP16)-
click to zoom
3D Models
854104AGILFT - Renesas Electronics  - 3D model - Small Outline Packages - PGG16 (TSSOP16)-
click to zoom

854104AGILFT Details

  • Manufacturer Part Number:

    854104AGILFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    PGG16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    TIN

854104AGILFT Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide for the 854104AGILFT, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance. Contact Renesas support for more information.
  • Renesas recommends following the power sequencing guidelines outlined in the datasheet, which involves powering up the VCC and VDD pins in a specific order to prevent damage to the device. Additionally, Renesas provides a power sequencing application note that provides more detailed guidance.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, Renesas recommends derating the device's performance at temperatures above 105°C to ensure reliability and prevent thermal shutdown.
  • The 854104AGILFT is not specifically designed for radiation-hardened applications. However, Renesas offers radiation-hardened versions of similar devices, such as the RL78/G14, which are designed for use in high-reliability applications.
  • Renesas recommends following the ESD protection guidelines outlined in the datasheet, which include using ESD protection devices, such as TVS diodes, and following proper handling and storage procedures to prevent ESD damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

854104AGILFT Overview

Use the download button to access the 854104AGILFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 85410, or try a keyword search, such as Clock Drivers
