Description:The 854105I is a low skew, high performance 1-to-4 LVCMOS/LVTTL-to-LVDS Clock Fanout Buffer. Utilizing Low Voltage Differential Signaling (LVDS), the 854105I provides a low power, low noise solution for distributing clock signals over controlled impedances of 100?. The 854105I accepts an LVCMOS/LVTTL input level and translates it to LVDS output levels. Guaranteed output and part-to-part skew characteristics make the 854105I ideal for those applications demanding well defined performance and repeatability.
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which can be found on their website. The guide includes thermal vias, heat sink recommendations, and PCB layer stack-up suggestions to ensure optimal thermal performance.
Renesas recommends following the power sequencing guidelines outlined in the datasheet, which involves powering up the VCC and VCCIO pins simultaneously, followed by the VREF pin. Additionally, Renesas provides a power sequencing diagram in their application notes to help with implementation.
The 854105AGILF has an operating temperature range of -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures, so it's recommended to operate within a narrower temperature range for optimal performance.
The 854105AGILF is not specifically designed or tested for radiation-hardened applications. If radiation hardness is a requirement, Renesas offers other products that are designed and tested for such applications. It's recommended to consult with Renesas or a qualified radiation effects expert to determine the suitability of the 854105AGILF or alternative products for radiation-hardened applications.
Renesas provides a JTAG debugging guide in their application notes, which includes troubleshooting tips and techniques for common issues such as JTAG signal integrity, clock frequency, and voltage level problems. Additionally, Renesas offers a JTAG debugging tool that can help identify and resolve issues with the JTAG interface.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
854105AGILF Overview

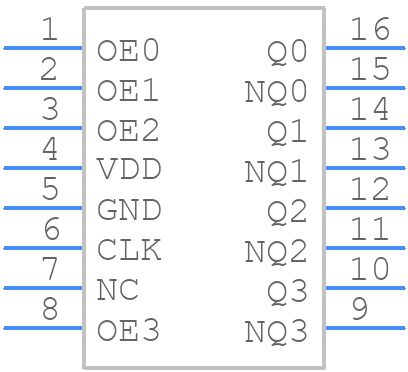

Use the download button to access the 854105AGILF schematic symbol, PCB footprint, and 3D model.
