854105AGLF - Renesas Electronics

Description: The 854105 is a low skew, high performance 1-to-4 LVCMOS/LVTTL-to-LVDS Clock Fanout Buffer. Utilizing Low Voltage Differential Signaling (LVDS), the 854105 provides a low power, low noise solution for distributing clock signals over controlled impedances of 100Ω. The 854105 accepts an LVCMOS/LVTTL input level and translates it to LVDS output levels. Guaranteed output and part-to-part skew characteristics make the 854105 ideal for those applications demanding well defined performance and repeatability.

Download 854105AGLF Model

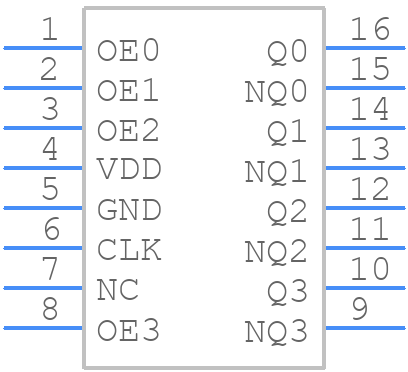

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
854105AGLF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PGG  16
click to zoom
3D Models
854105AGLF - Renesas Electronics  - 3D model - Small Outline Packages - PGG  16
click to zoom

854105AGLF Details

  • Manufacturer Part Number:

    854105AGLF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    PGG16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    854105

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    75 mA

  • Prop. Delay@Nom-Sup:

    1.62 ns

  • Propagation Delay (tpd):

    1.62 ns

  • Same Edge Skew-Max (tskwd):

    0.055 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

  • fmax-Min:

    250 MHz

854105AGLF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide for the 854105AGLF, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance. It's available on the Renesas website or through their support channels.
  • Renesas recommends a specific power sequencing scheme to ensure proper startup and operation of the 854105AGLF. This information can be found in the device's application notes or through direct consultation with Renesas support engineers.
  • Renesas provides guidelines for decoupling capacitor selection and placement in the device's datasheet and application notes. In general, a combination of high-frequency and low-frequency capacitors is recommended to ensure stable power supply and minimize noise.
  • Renesas provides troubleshooting guides and FAQs for common issues with the I2C interface, including clock stretching, bus contention, and data corruption. Additionally, Renesas support engineers can provide customized support for specific design issues.
  • While the datasheet specifies the maximum operating temperature range, Renesas recommends operating the 854105AGLF within a narrower temperature range (e.g., 0°C to 85°C) to ensure optimal performance, reliability, and longevity.
