Description:The 8545I is a low skew, high performance 1-to-4 LVCMOS/LVTTL-to-LVDS Clock Fanout Buffer and a member of the family of High Performance Clock Solutions from IDT. Utilizing Low Voltage Differential Signaling (LVDS) the 8545I provides a low power, low noise, solution for distributing clock signals over controlled impedances of 100?. The 8545I accepts a LVCMOS/LVTTL input level and translates it to 3.3V LVDS output levels. Guaranteed output and part-to-part skew characteristics make the 8545I ideal for those
Renesas provides a recommended PCB layout guide in their application note (APL-AN-1201) which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
Renesas recommends a specific power sequencing scheme in their datasheet, which involves powering up the VCC and VDD pins in a specific order. Additionally, they provide a power sequencing diagram in their application note (APL-AN-1202).
Renesas recommends using high-frequency, low-ESR capacitors (e.g., 100nF, 1uF, and 10uF) with a voltage rating of at least 2.5V, placed as close as possible to the VCC and VDD pins.
Renesas provides an I2C troubleshooting guide in their application note (APL-AN-1203), which covers common issues such as bus contention, clock stretching, and slave address conflicts.
The 8545BGILF is rated for operation from -40°C to +125°C, but Renesas recommends derating the device for reliable operation above 85°C.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
8545BGILF Overview

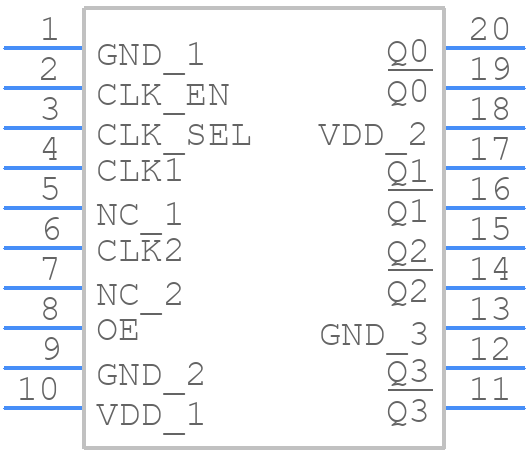

Use the download button to access the 8545BGILF schematic symbol, PCB footprint, and 3D model.
