Part Image

8545BGLF - Renesas Electronics

Description: The 8545 is a low skew, high performance 1-to-4 LVCMOS/LVTTL-to-LVDS Clock Fanout Buffer and a member of the family of High Performance Clock Solutions from IDT. Utilizing Low Voltage Differential Signaling (LVDS) the 8545 provides a low power, low noise, solution for distributing clock signals over controlled impedances of 100Ω. The 8545 accepts a LVCMOS/LVTTL input level and translates it to 3.3V LVDS output levels. Guaranteed output and part-to-part skew characteristics make the 8545 ideal for those appl

Download 8545BGLF Model

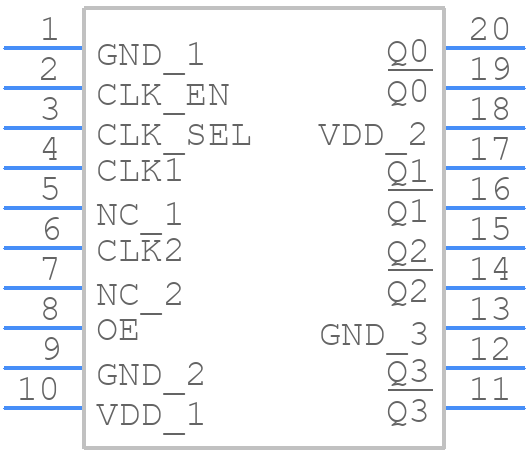

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
8545BGLF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PGG20
click to zoom
3D Models
8545BGLF - Renesas Electronics  - 3D model - Small Outline Packages - PGG20
click to zoom

8545BGLF Details

  • Manufacturer Part Number:

    8545BGLF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    PGG20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Terminal Finish:

    Tin (Sn)

8545BGLF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN3601EJ0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
  • Renesas recommends a specific power sequencing scheme in their application note (R01AN3601EJ0100) to ensure proper device operation. The sequence involves powering up the VCC, then the VDD, and finally the AVCC and DVCC.
  • Renesas recommends implementing EMI and ESD protection measures, such as using EMI filters, shielding, and ESD protection devices (e.g., TVS diodes) to ensure the device operates reliably in noisy environments.
  • To optimize for low power consumption, Renesas recommends using the device's power-saving modes (e.g., sleep mode, idle mode), reducing clock frequencies, and minimizing I/O activity. Additionally, using a low-power oscillator and optimizing the system's power supply can also help reduce power consumption.
  • The 8545BGLF's ADC has limitations on its conversion speed, resolution, and input range. Renesas recommends consulting the datasheet and application notes for specific details on ADC operation and limitations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

8545BGLF Overview

Use the download button to access the 8545BGLF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8545B, or try a keyword search, such as Clock Drivers
