8545BGLFT footprint, schematic symbol and 3D model by Renesas Electronics

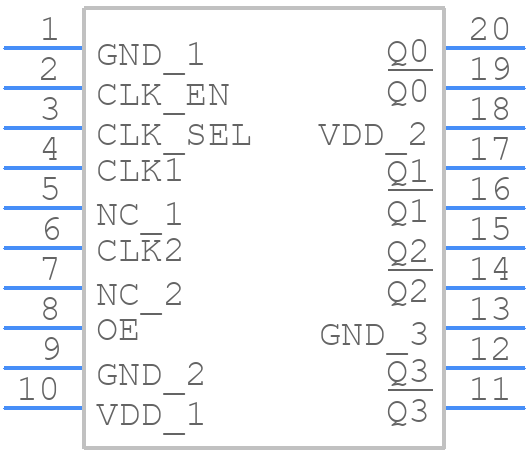

Symbol

PCB Footprints

3D Models

8545BGLFT Details

Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes thermal vias, copper pours, and component placement guidelines to ensure optimal thermal performance.
Renesas recommends a specific power sequencing scheme to ensure proper device operation. This information can be found in the device's application note or by contacting Renesas' technical support team.
Renesas recommends using high-quality, low-ESR decoupling capacitors with a value of 10uF to 22uF, placed as close as possible to the device's power pins. The specific capacitor selection depends on the application's requirements and operating frequency.
Renesas recommends implementing ESD protection measures, such as using ESD diodes, TVS diodes, or ESD-protected buffers, to prevent damage from electrostatic discharge. The specific protection scheme depends on the application's requirements and operating environment.
The recommended operating temperature range for the 8545BGLFT is -40°C to +125°C, but this may vary depending on the specific application and use case. It's essential to consult the datasheet and application notes for specific temperature-related information.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the 8545BGLFT schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 8545B, or try a keyword search, such as Clock Drivers
