854S006AGILF - Renesas Electronics

Description: The 854S006I is a low skew, high performance 1-to-6 Differential-to-LVDS Fanout Buffer. The CLK, nCLK pair can accept most standard differential input levels. The 854S006I is characterized to operate from either a 2.5V or a 3.3V power supply. Guaranteed output skew characteristics make the 854S006I ideal for those clock distribution applications demanding well defined performance and repeatability.

Download 854S006AGILF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

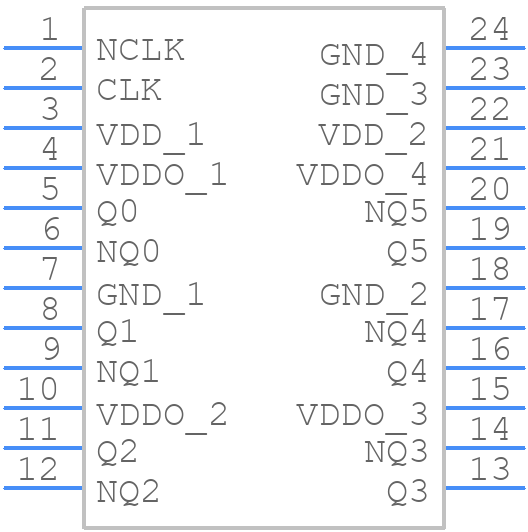

854S006AGILF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
854S006AGILF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PGG24*
click to zoom
3D Models
854S006AGILF - Renesas Electronics - 3D model - Small Outline Packages - PGG24*
click to zoom

854S006AGILF Details

  • Manufacturer Part Number:

    854S006AGILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    PGG24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Additional Feature:

    ALSO OPERATE AT 3.3V SUPPLY

  • Family:

    854S

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of True Outputs:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    55 mA

  • Prop. Delay@Nom-Sup:

    0.85 ns

  • Propagation Delay (tpd):

    0.85 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.055 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • fmax-Min:

    1700 MHz

854S006AGILF Frequently Asked Questions (FAQs)

  • A multi-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the package for heat dissipation. A thermal pad on the bottom of the package should be connected to a thermal plane on the PCB.
  • Use a 4-layer PCB with a solid ground plane, and route critical signals on inner layers. Implement a decoupling capacitor network and follow the recommended pinout and signal routing guidelines. Ensure a minimum of 3mm clearance between the package and any nearby metal objects.
  • The 854S006AGILF requires a power-on reset (POR) circuit to ensure proper startup. The recommended power sequencing is VCC, then VCCIO, and finally VREF. The voltage ramp-up rate should be 1-2 ms/V to prevent latch-up.
  • Handle the device in an ESD-controlled environment, using wrist straps, anti-static bags, and ESD-safe workbenches. Store the device in its original packaging or an anti-static bag, away from direct sunlight and moisture.
  • Perform functional testing, including input/output signal verification, clock signal validation, and power consumption measurement. Use a logic analyzer or oscilloscope to verify signal integrity and timing. Validate the device's performance using a thermal chamber and environmental testing.
