- Part Number 85504-5001
- Manufacturer Molex
- Pin Count 10
- Part Category Connector
- Package Category Other

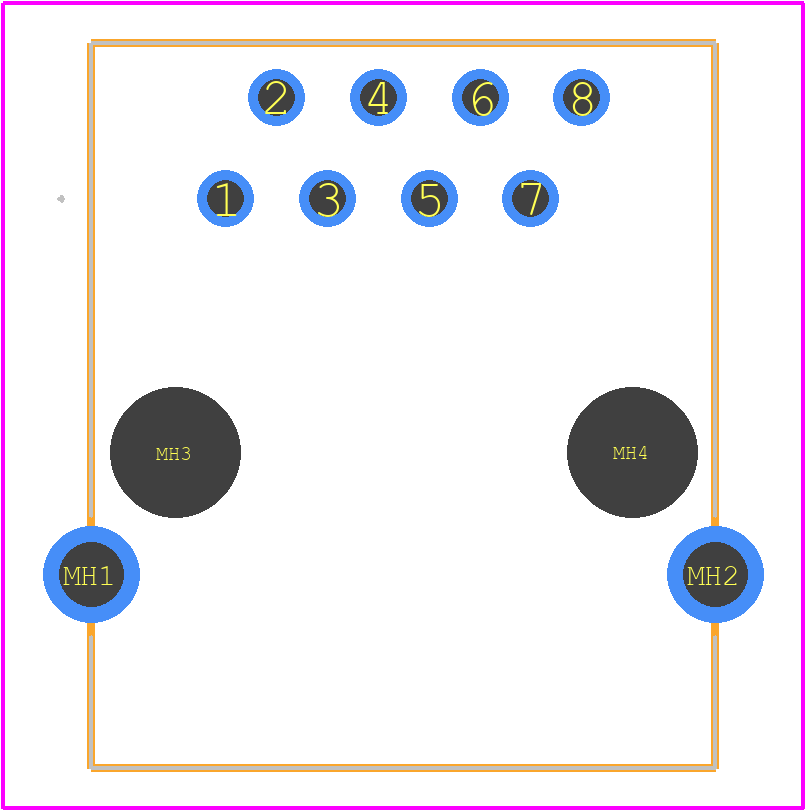

- Footprint Name Other - 85504-5001-2
- Released Date Dec 11, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
85504-5001 Details
-
Manufacturer Part Number:
85504-5001
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Ireland, Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
21 Weeks
-
Manufacturer:
Molex
-
YTEOL:
6.97
-
Body/Shell Style:
JACK
85504-5001 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
-
Yes, the 85504-5001 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
-
The operating temperature range for the 85504-5001 is -40°C to 105°C (-40°F to 221°F).
-
Yes, the 85504-5001 is designed for outdoor use and can withstand exposure to moisture and humidity.
-
No, the 85504-5001 is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may compromise the connector's performance and reliability.
Trust Checks
Expert Contribution
System Verified
Community Approved
85504-5001 Overview
Use the download button to access the 85504-5001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 85504,
or try a keyword search, such as Telecom and Datacom Connectors
