- Part Number 855821
- Manufacturer Qorvo
- Pin Count 6
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - 855821-4
- Released Date Jan 21, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
855821 Details
-
Manufacturer Part Number:
855821
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
ROHS COMPLIANT, HERMETIC, CERAMIC PACKAGE-6
-
ECCN Code:
5A991.B
-
Manufacturer:
Qorvo
-
YTEOL:
0
-
Additional Feature:
TAPE AND REEL
-
Center or Cutoff Frequency (fo/fc):
836.5 MHz
-
Filter Type:
SAW FILTER
-
Height:
1.32 mm
855821 Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-2171, which includes guidelines for thermal vias, heat sinks, and PCB material selection to ensure optimal performance and thermal dissipation.
-
Qorvo recommends using their proprietary tools, such as the Qorvo GaN Design Simulator, to optimize the input and output matching networks for maximum gain and efficiency. The tool provides a graphical interface to simulate and optimize the matching networks based on the specific application requirements.
-
Qorvo provides a soldering and assembly guide in their application note AN-2172, which includes recommendations for soldering temperatures, times, and techniques, as well as assembly guidelines for ensuring reliable connections and minimizing thermal stress.
-
Qorvo recommends following the guidelines outlined in their application note AN-2173, which provides recommendations for EMC and EMI compliance, including shielding, filtering, and layout considerations to minimize electromagnetic radiation and susceptibility.
-
Qorvo performs a range of reliability and qualification tests on the 855821 component, including temperature cycling, humidity testing, and electrical overstress testing, as outlined in their reliability report. The report provides detailed information on the test conditions, results, and qualification status.
Trust Checks
Expert Contribution
System Verified
Community Approved
855821 Overview

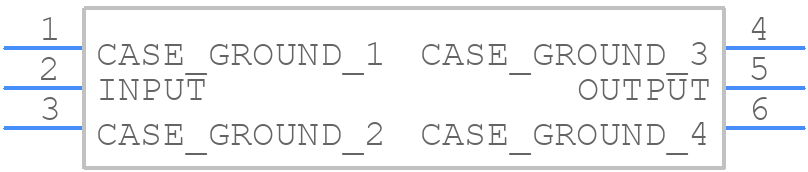

Use the download button to access the 855821 schematic symbol, PCB footprint, and 3D model.
