The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections without damaging the terminals.
Yes, the 858-22-004-80-011101 connector is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and screw torque to prevent connector damage.
The 858-22-004-80-011101 connector is rated for operating temperatures between -55°C to 150°C and can withstand humid environments, but it's essential to follow the manufacturer's guidelines for environmental testing and to ensure proper sealing and protection to prevent moisture ingress.
While the connector is designed for AWG 22-28 wires, it's possible to use it with other wire sizes, but it's crucial to ensure the wire insulation diameter and wire gauge are compatible with the connector's terminal size and to follow the manufacturer's guidelines for wire stripping and termination.
Yes, it's essential to follow the manufacturer's recommended PCB layout guidelines, including keeping the PCB thickness within the recommended range, ensuring proper clearance around the connector, and avoiding vias or traces under the connector to prevent damage or electrical interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
858-22-004-80-011101 Overview

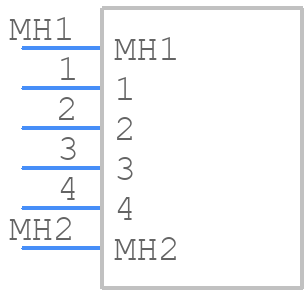

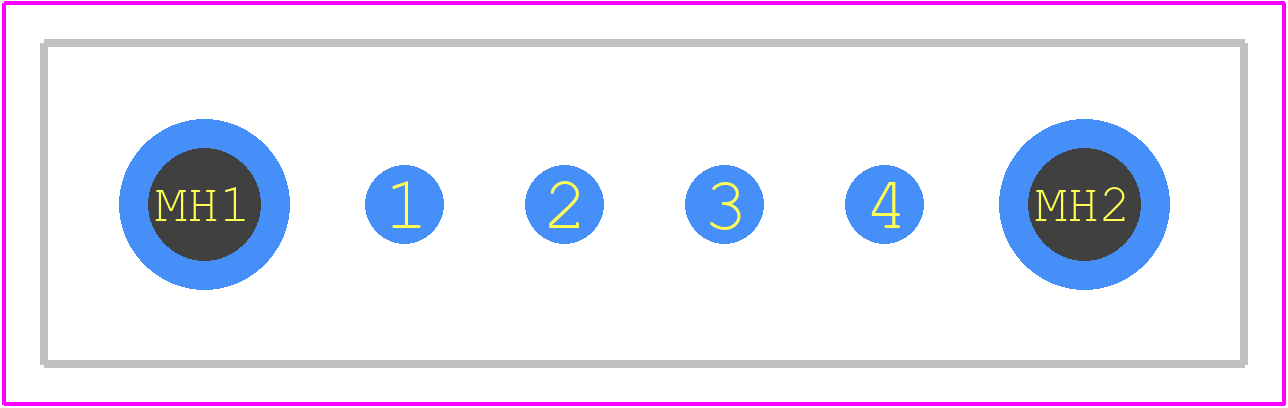

Use the download button to access the 858-22-004-80-011101 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 858-2,
or try a keyword search, such as Headers and Edge Type Connectors
