860-005-113R004 - NorComp

Description: Circular Metric Connectors M12 5 Pos M Pan mnt thru hole

Download 860-005-113R004 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

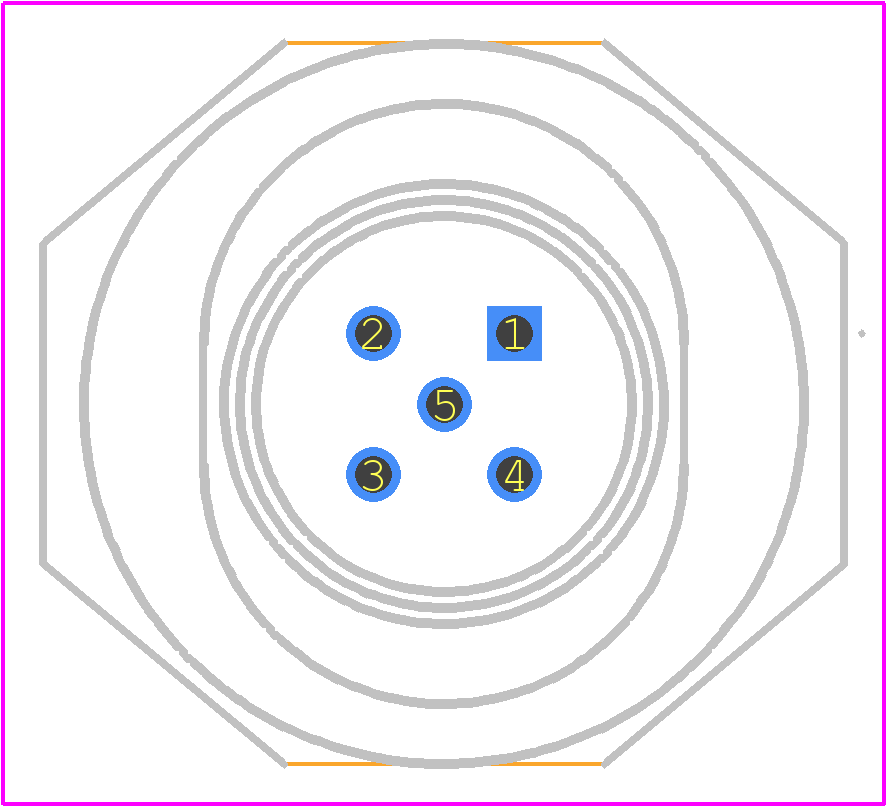

860-005-113R004 - NorComp PCB footprint - Other - Other - 860-005-113R004
click to zoom
3D Models
860-005-113R004 - NorComp  - 3D model - Other - 860-005-113R004
click to zoom

860-005-113R004 Details

  • Manufacturer Part Number:

    860-005-113R004

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    NorComp

  • Connector Type:

    CIRCULAR CONNECTOR

860-005-113R004 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 860-005-113R004 connector is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the connector to the PCB or panel to prevent damage or disconnection.
  • The 860-005-113R004 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating. Additionally, consider the operating temperature range (-40°C to 125°C) and ensure the connector is suitable for your specific environmental conditions.
  • The 860-005-113R004 connector is designed to accommodate wire sizes between 24 AWG and 16 AWG. Using wire sizes outside this range may compromise the connection reliability or damage the connector.
  • Yes, the 860-005-113R004 connector is suitable for power applications. However, ensure that the connector is rated for the desired current and voltage, and follow proper derating guidelines to prevent overheating or electrical stress.
