The recommended torque for the screw terminals is 0.5-1.0 Nm (4-8 in-lbs) to ensure secure connections.
Yes, the 860-X08-213R0R4 is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, industrial, and transportation.
The operating temperature range for the 860-X08-213R0R4 is -55°C to 125°C (-133°F to 257°F), making it suitable for a wide range of applications.
Yes, the 860-X08-213R0R4 is designed to be resistant to corrosion and can withstand exposure to saltwater and certain chemicals, but it's recommended to consult the manufacturer's specifications and testing data for specific environmental conditions.
The mating cycle life of the 860-X08-213R0R4 is typically rated for 500-1000 mating cycles, depending on the application and environmental conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
860-X08-213R0R4 Overview

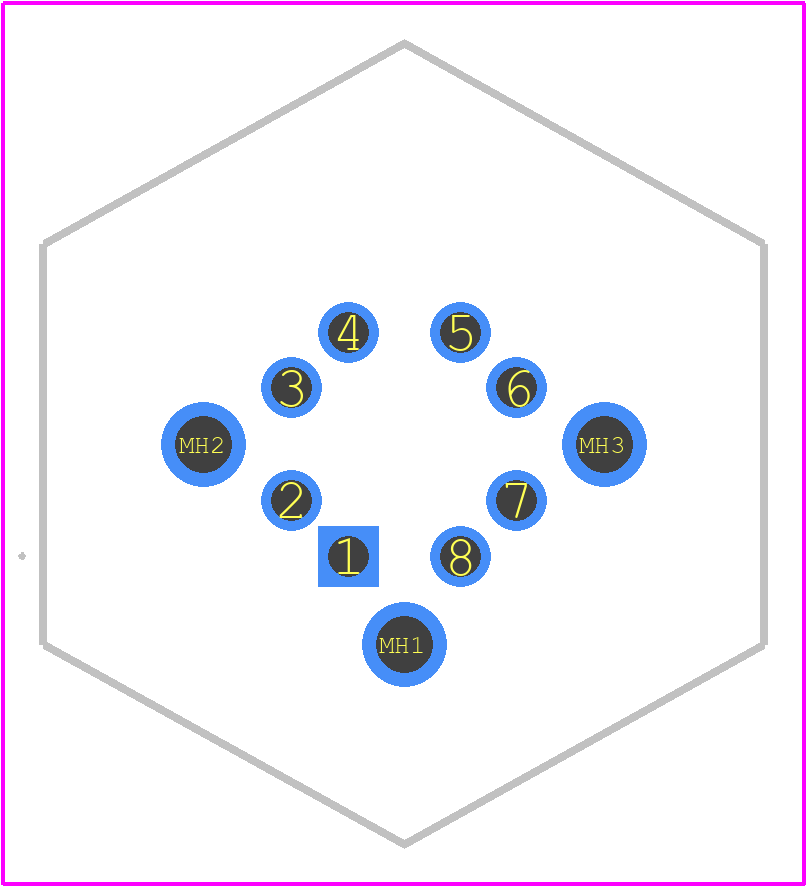

Use the download button to access the 860-X08-213R0R4 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 860-X,
or try a keyword search, such as Other Circular Connectors
