861-005-113R001 - NorComp

Description: Circular Metric Connectors IP67 Male M12 Circular Connector 5 Position Right Angle Dip Solder

Download 861-005-113R001 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 861-005-113R001 model

Email notifications will be applied after download.

Send part feedback

Symbol

861-005-113R001 - NorComp - PCB symbol

PCB Footprints

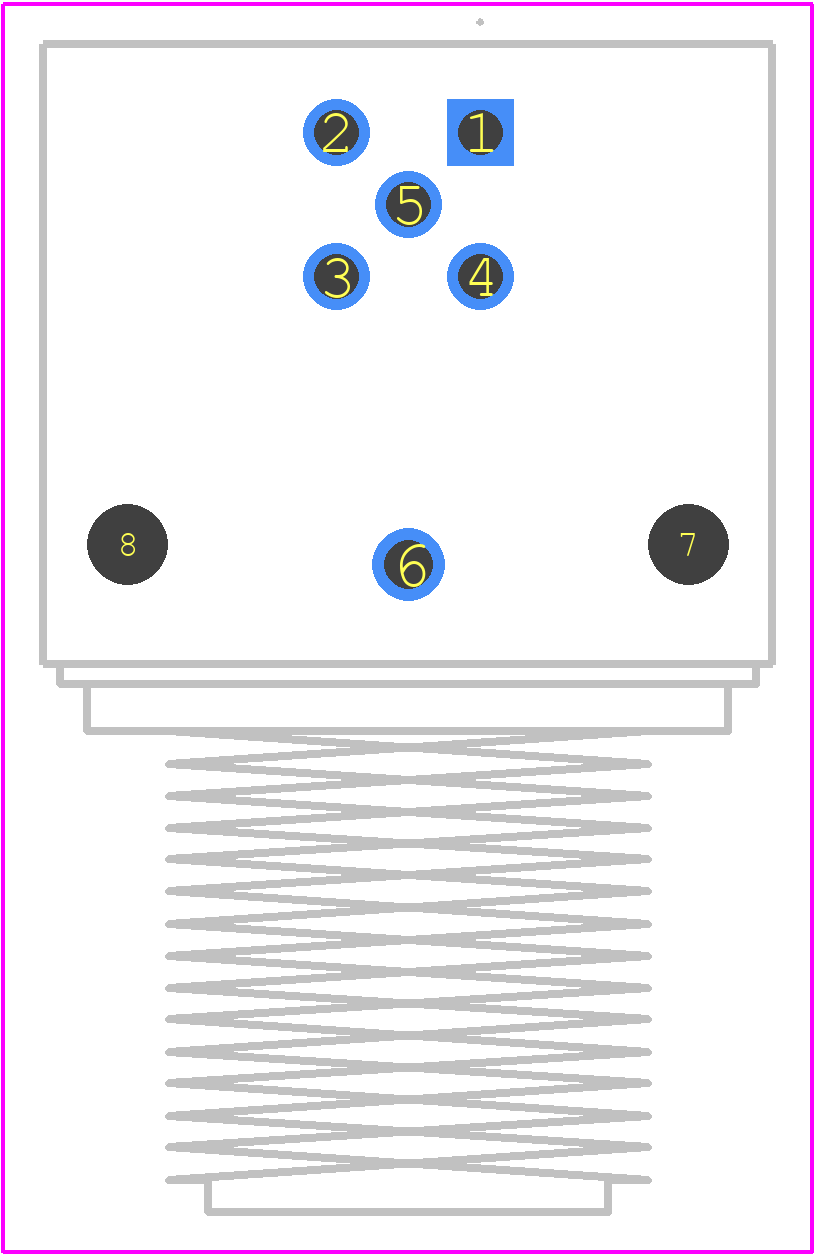

861-005-113R001 - NorComp PCB footprint - Other - Other - 861-005-113R001-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for 861-005-113R001
Part Number 861-005-113R001
Manufacturer NorComp
Pin Count 6
Part Category Connector
Package Category Other
Footprint Name Other - 861-005-113R001-1
Released Date Dec 19, 2025
Last Modified Date Dec 19, 2025 1:24 PM UTC
Pinout / Pin List Click Here (Member Only)

861-005-113R001 Details

Manufacturer Part Number:
861-005-113R001
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Taiwan
ECCN Code:
EAR99
HTS Code:
8536.69.40.20
Manufacturer:
NorComp
Contact Finish Termination:
GOLD
JESD-609 Code:
e4

Trust Checks

Community Provided

System Verified

Community Approved

861-005-113R001 Overview

Use the download button to access the 861-005-113R001 schematic symbol and PCB footprint.
