The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw threads.
Yes, the 861-005-213R004 is designed to withstand high-vibration environments and is suitable for applications where shock and vibration are a concern.
Yes, the connector is designed to operate in harsh environments, including high temperatures up to 150°C and high humidity. However, it's recommended to consult with NorComp's application engineers for specific environmental requirements.
The mating cycle life of the 861-005-213R004 is rated for a minimum of 500 mating cycles.
The 861-005-213R004 is designed to be compatible with other manufacturers' connectors that meet the same industry standards, but it's recommended to consult with NorComp's application engineers for specific compatibility questions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
861-005-213R004 Overview

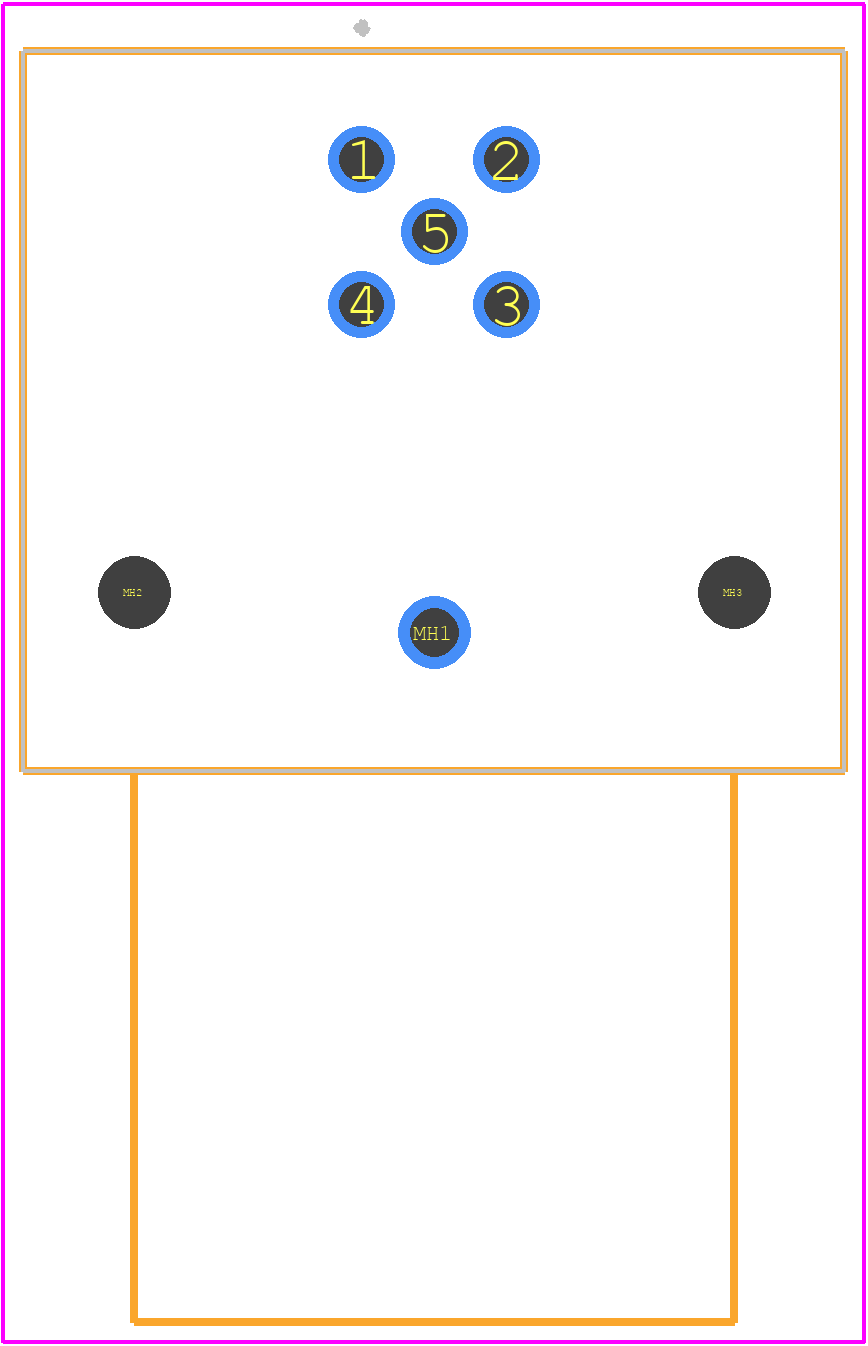

Use the download button to access the 861-005-213R004 schematic symbol, PCB footprint, and 3D model.
