The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
Yes, the 861-D04-113R004 is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10G peak acceleration.
Yes, the connector is rated IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes, making it suitable for outdoor use.
The operating temperature range for the 861-D04-113R004 is -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
While the datasheet specifies AWG 24-20 wire sizes, the connector can accommodate other wire sizes with the use of adapters or by consulting with NorComp's technical support team.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
861-D04-113R004 Overview

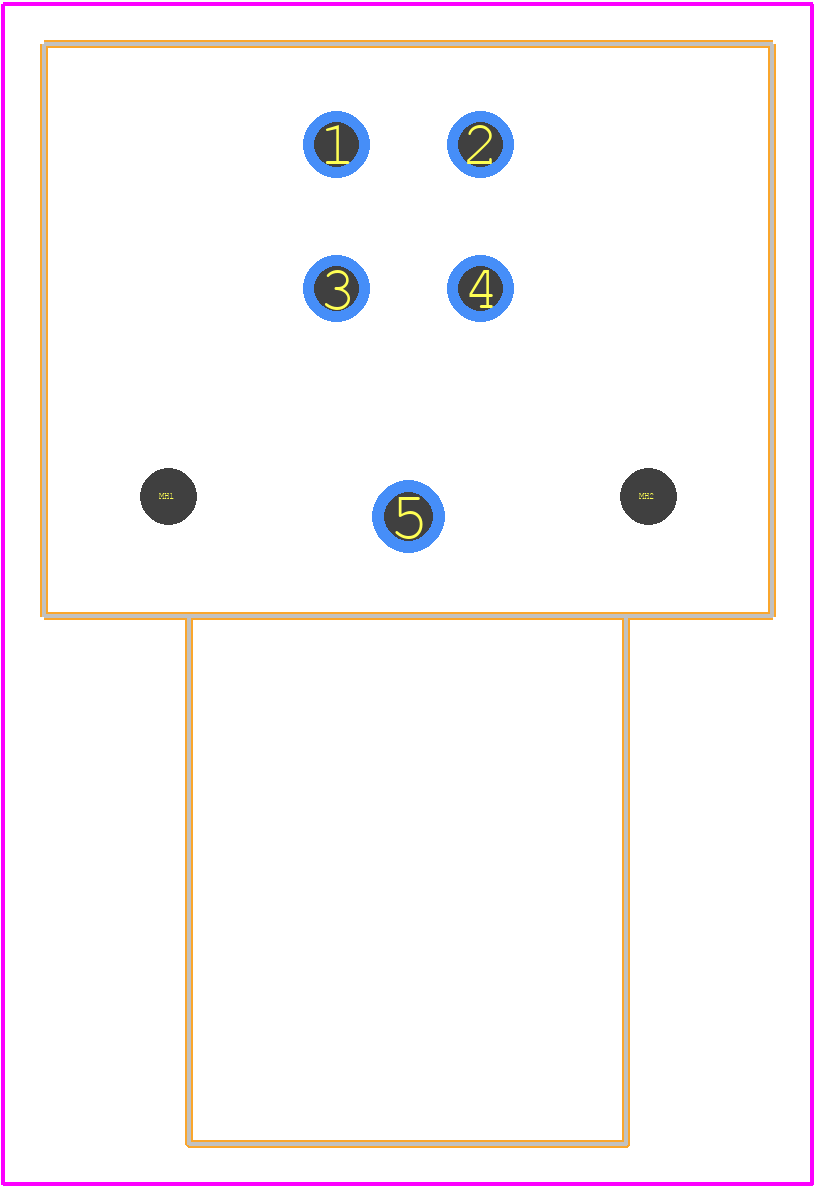

Use the download button to access the 861-D04-113R004 schematic symbol and PCB footprint.
