The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
Yes, the 861-D04-213R004 connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, industrial, and transportation.
The operating temperature range of the 861-D04-213R004 connector is -55°C to 125°C (-65°F to 257°F).
Yes, the 861-D04-213R004 connector is designed to be compatible with potting or encapsulation, but it's recommended to consult with NorComp's application engineers for specific guidance.
The mating cycle life of the 861-D04-213R004 connector is rated for a minimum of 500 mating cycles.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
861-D04-213R004 Overview

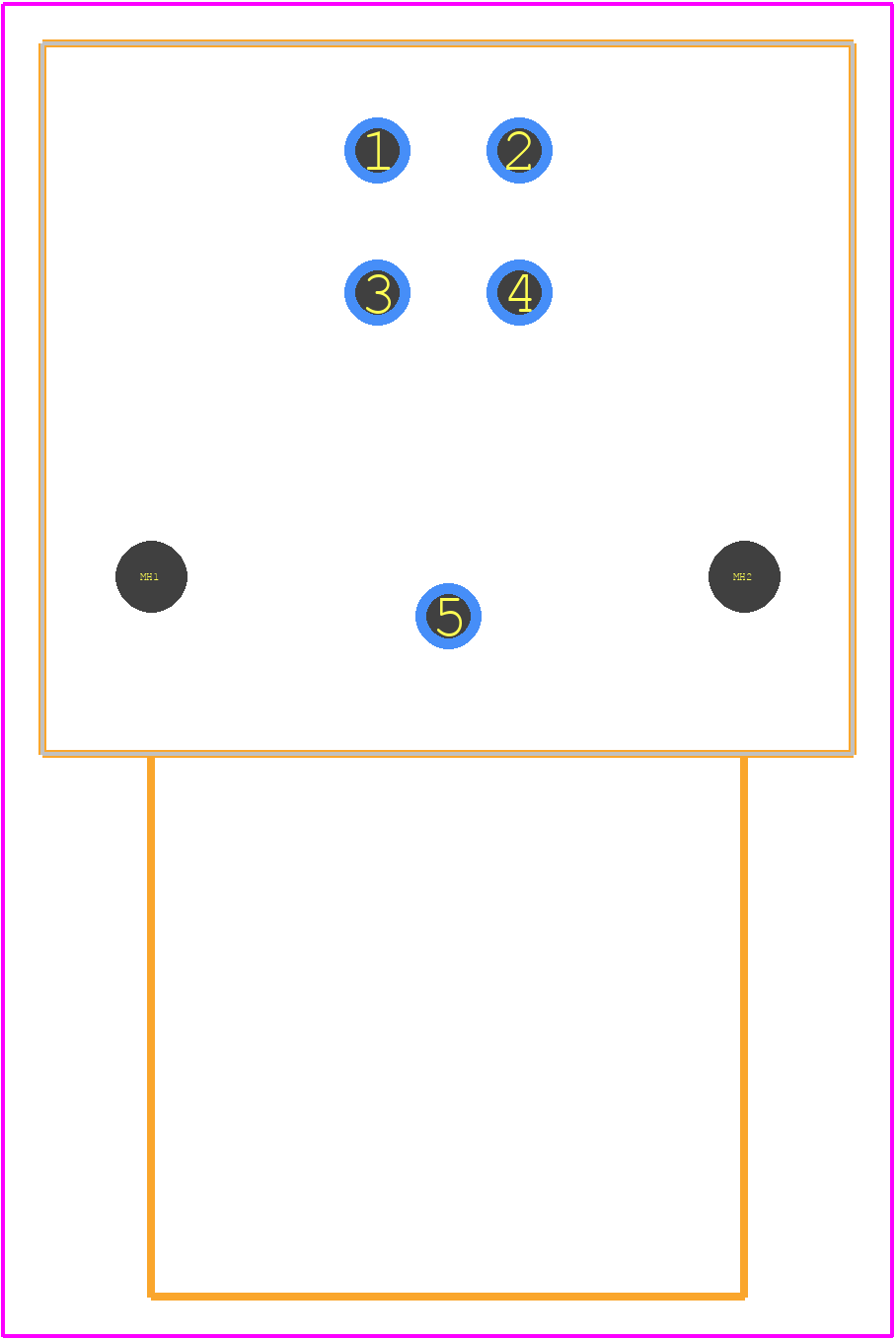

Use the download button to access the 861-D04-213R004 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 861-D,
or try a keyword search, such as Other Circular Connectors
