87215-7 - TE Connectivity

Description: Connector Header Through Hole 20 position 0.100" (2.54mm)

Download 87215-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
87215-7 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

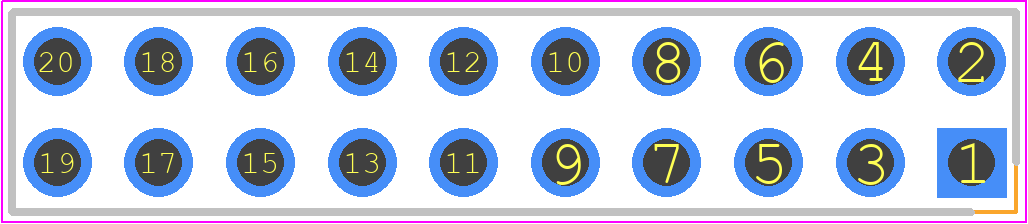

87215-7 - TE Connectivity PCB footprint - Header, Vertical - Header, Vertical - 87215-7
click to zoom
3D Models
87215-7 - TE Connectivity - 3D model - Header, Vertical - 87215-7
click to zoom

87215-7 Details

  • Manufacturer Part Number:

    87215-7

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

87215-7 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 87215-7 connector is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and securing the connector.
  • The 87215-7 connector has a IP67 rating, making it suitable for outdoor use, but it's essential to ensure proper sealing and protection from environmental factors.
  • The operating temperature range for the 87215-7 connector is -40°C to 125°C (-40°F to 257°F).
  • While it's technically possible, using a different wire gauge than recommended may affect the connector's performance and reliability. It's recommended to follow the manufacturer's guidelines for wire gauge and size.
