8735AY-31LF - Renesas Electronics

Description: The 8735-31 is a highly versatile 1:5 Differential -to-3.3V LVPECL Clock Generator. The 8735-31 has a fully integrated PLL and can be configured as zero delay buffer, multiplier or divider, and has an output frequency range of 15.625MHz to 350MHz. The reference divider, feedback divider and output divider are each programmable, thereby allowing for the following output-to-input frequency ratios: 8:1, 4:1, 2:1, 1:1, 1:2, 1:4, 1:8. The external feedback allows the device to achieve "zero delay" between the in

Download 8735AY-31LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

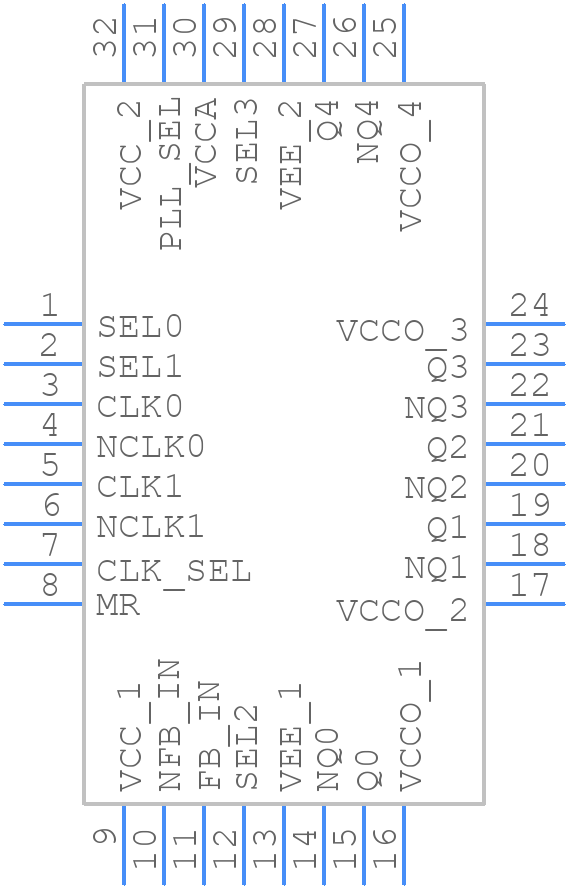

8735AY-31LF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
8735AY-31LF - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - 8735AY-31LF
click to zoom
3D Models
8735AY-31LF - Renesas Electronics - 3D model - Quad Flat Packages - 8735AY-31LF
click to zoom

8735AY-31LF Details

  • Manufacturer Part Number:

    8735AY-31LF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TQFP

  • Pin Count:

    32

  • Manufacturer Package Code:

    PRG32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin (Sn)

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

8735AY-31LF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APL-AN-114) for the 8735AY-31LF, which includes thermal vias, thermal pads, and heat sink recommendations to ensure optimal thermal performance.
  • The 8735AY-31LF has an internal overcurrent protection (OCP) feature that can be enabled by setting the OCP threshold through the I2C interface. Additionally, external overcurrent protection circuits can be implemented using sense resistors and comparators to detect overcurrent conditions.
  • Renesas recommends using a 10uF to 22uF ceramic capacitor with an X5R or X7R dielectric as the input capacitor for the 8735AY-31LF. The capacitor should be placed as close as possible to the VIN pin to minimize noise and ensure stable operation.
  • The 8735AY-31LF has a low-power mode that can be enabled by setting the PMODE pin to a logic low state. Additionally, the device can be configured for low-power mode operation through the I2C interface by setting the appropriate registers. Refer to the datasheet for specific register settings and PMODE pin configuration.
  • The 8735AY-31LF has an operating temperature range of -40°C to +125°C, making it suitable for automotive and industrial applications that require high reliability and temperature tolerance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

8735AY-31LF Overview

Use the download button to access the 8735AY-31LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8735A, or try a keyword search, such as Clock Generators
