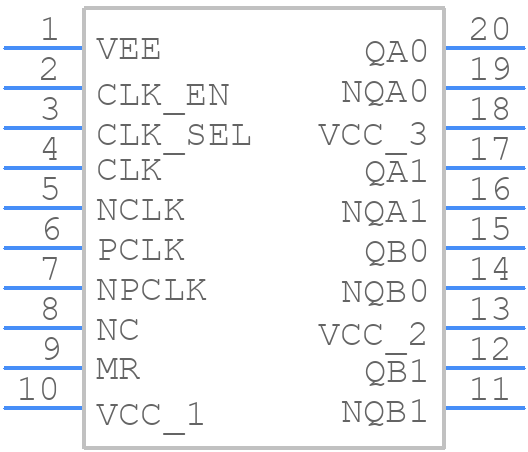

8737AGI-11LF footprint, schematic symbol and 3D model by Renesas Electronics

Symbol

PCB Footprints

3D Models

8737AGI-11LF Details

Renesas provides a recommended PCB layout guide in their application note (R01AN2732EU0100) which includes thermal vias, thermal pads, and heat sink recommendations to ensure optimal thermal performance.
Renesas recommends a specific power sequencing scheme in their application note (R01AN2732EU0100) to ensure proper device operation. The sequence involves powering up the VCC, then the VDD, and finally the VBAT.
Renesas recommends using 0.1uF to 1uF decoupling capacitors with a voltage rating of 10V or higher, placed as close as possible to the power pins (VCC, VDD, and VBAT) to minimize noise and ensure stable operation.
Renesas provides a JTAG interface for debugging and testing. During production testing, it's recommended to use a JTAG adapter and a boundary scan tool to access the device's internal registers and perform testing.
The thermal resistance values for the 8737AGI-11LF package are not explicitly stated in the datasheet. However, Renesas provides thermal resistance values in their package thermal model document (R01TP2732EU0100), which can be used for thermal analysis and simulation.
