8741004BGILF - Renesas Electronics

Description: The 8741004I is a high performance Differential-to-LVDS/0.7V Differential Jitter Attenuator designed for use in PCI Express®™ systems. In some PCI Express® systems, such as those found in desktop PCs, the PCI Express® clocks are generated from a low bandwidth, high phase noise PLL frequency synthesizer. In these systems, a jitter attenuator may be required to attenuate high frequency random and deterministic jitter components from the PLL synthesizer and from the system board. The 8741004I has 3 PLL bandwid

Download 8741004BGILF Model

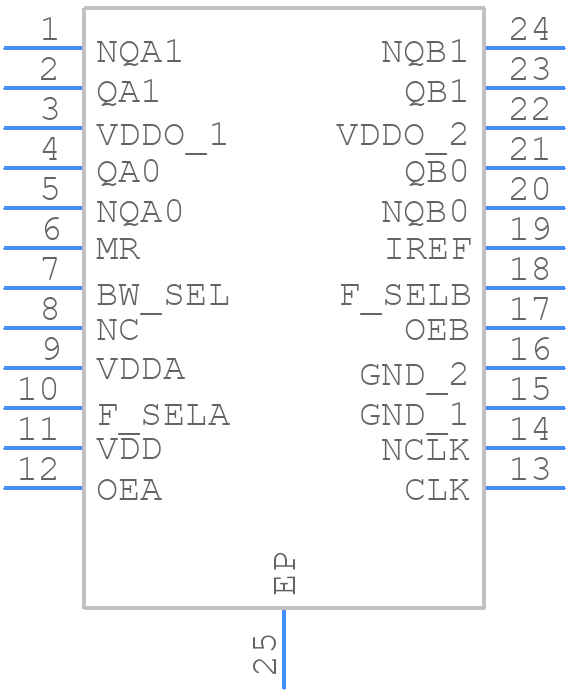

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
8741004BGILF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 24 Lead TSSOP, E-Pad_
click to zoom
3D Models
8741004BGILF - Renesas Electronics  - 3D model - Small Outline Packages - 24 Lead TSSOP, E-Pad_
click to zoom

8741004BGILF Details

  • Manufacturer Part Number:

    8741004BGILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    24

  • Manufacturer Package Code:

    EJG24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    2 Days

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

8741004BGILF Frequently Asked Questions (FAQs)

  • Renesas provides a reference design guide and thermal management guidelines in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and signal integrity.
  • Renesas recommends using their power management ICs (PMICs) specifically designed for the 8741004BGILF. These PMICs provide the necessary power sequencing, voltage regulation, and monitoring. Refer to the PMIC datasheet and application notes for implementation details.
  • The recommended clock and PLL settings can be found in the device's user manual and application notes. It's essential to follow these settings to ensure proper device operation and to avoid potential issues with clock domain crossing and signal integrity.
  • Renesas provides power-saving features and modes in the 8741004BGILF. Implementing these features, such as dynamic voltage and frequency scaling, clock gating, and power gating, can help reduce power consumption and heat generation. Refer to the device's user manual and application notes for implementation details.
  • Renesas recommends following industry-standard ESD protection guidelines, such as using TVS diodes and ESD protection devices. Additionally, PCB design considerations, such as using a multi-layer board, controlled impedance, and proper signal routing, are essential to ensure signal integrity and reduce EMI.
