874381443 - Molex

Description: 1.50mm Pitch, Pico-SPOX PCB Header, Single Row, Right-Angle, Surface Mount, Tin over Nickel Plating, Friction Lock, Tape and Reel, Beige

Download 874381443 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

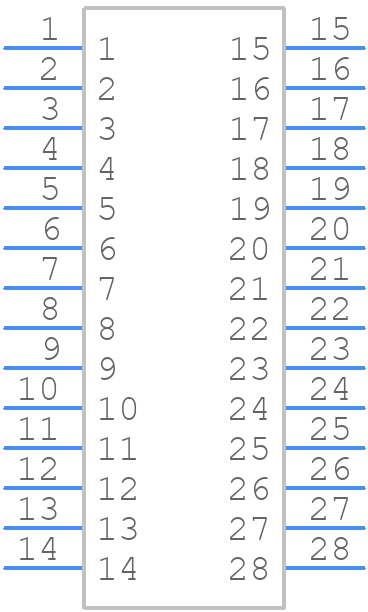

874381443 - Molex - PCB symbol
click to zoom
PCB Footprints

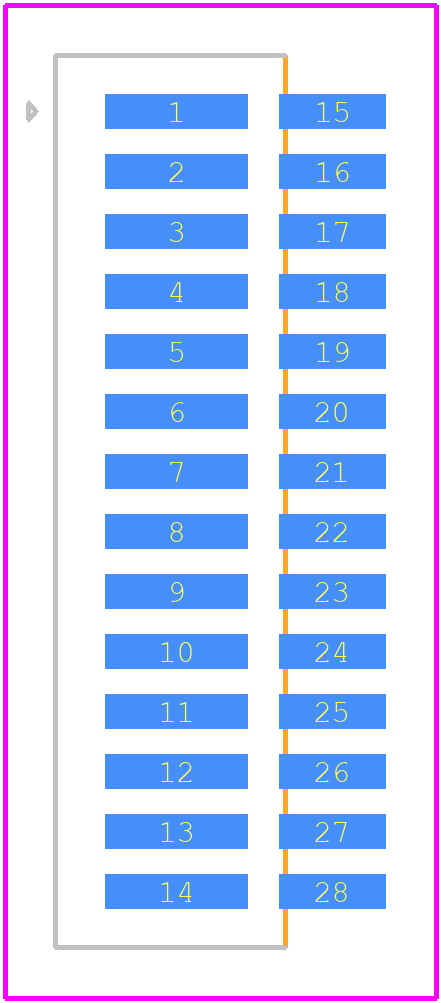

874381443 - Molex PCB footprint - Other - Other - 874381443-3
click to zoom
3D Models
874381443 - Molex - 3D model - Other - 874381443-3
click to zoom

874381443 Details

  • Manufacturer Part Number:

    874381443

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Malaysia, Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Molex

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Termination:

    Tin (Sn)

  • JESD-609 Code:

    e3

874381443 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 0874381443 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 0874381443 connector is designed to withstand high-vibration environments. However, it's recommended to follow Molex's guidelines for vibration testing and to ensure proper mounting and strain relief to prevent connector damage.
  • The maximum cable bend radius for the 0874381443 connector is 25mm. Exceeding this radius may cause damage to the cable or connector.
  • Yes, the 0874381443 connector is designed for automated assembly processes. Molex provides guidance on automated assembly and can provide custom tooling and fixtures upon request.
  • The operating temperature range for the 0874381443 connector is -40°C to 105°C. However, it's recommended to consult the datasheet for specific temperature ratings and derating factors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

874381443 Overview

Use the download button to access the 874381443 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 87438, or try a keyword search, such as Headers and Edge Type Connectors
