87715-9202 - Molex

Description: PCI Express / PCI Connectors PCI Express EdgeCard 98ckt Ny46 Blk PhBr

Download 87715-9202 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
87715-9202 - Molex - PCB symbol
click to zoom
PCB Footprints

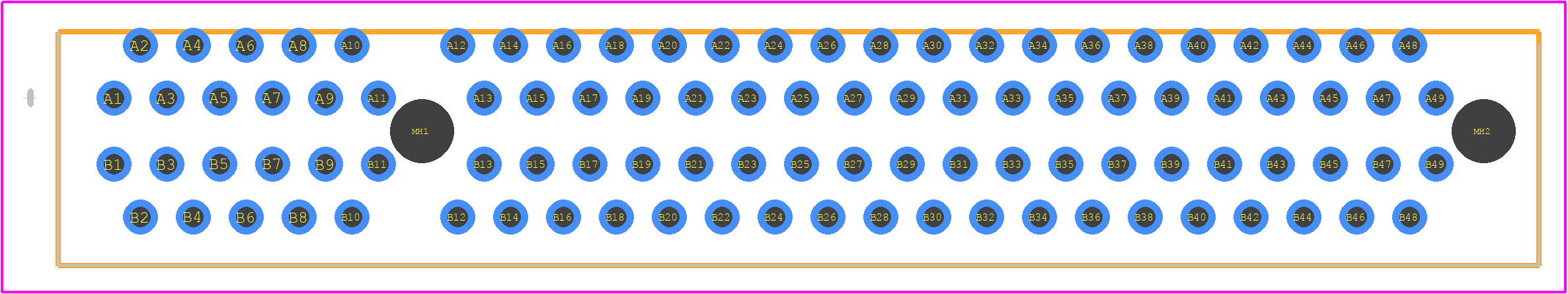

87715-9202 - Molex PCB footprint - Other - Other - 87715-9202-2
click to zoom
3D Models
87715-9202 - Molex - 3D model - Other - 87715-9202-2
click to zoom

87715-9202 Details

  • Manufacturer Part Number:

    87715-9202

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Hong Kong SAR, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    PANEL MOUNTABLE

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.348 inch

  • Body Depth:

    0.441 inch

  • Body Length:

    2.205 inch

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BELLOWED TYPE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.039 inch

  • Mating Contact Row Spacing:

    0.071 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    4

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2 mm

  • Polarization Key:

    POLAR PIN POSITION

  • Rated Current (Signal):

    1.1 A

  • Terminal Pitch:

    1 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    98

  • UL Flammability Code:

    94V-0

87715-9202 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 87715-9202 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 87715-9202 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's not designed for extreme outdoor or harsh environment applications. If you need a connector for such applications, consider using a connector with a higher IP rating or additional protection measures.
  • While the datasheet recommends using AWG 20-24 wires, you can use other wire sizes with caution. However, using smaller or larger wires may affect the connector's performance, reliability, and durability. Consult with Molex or a qualified engineer to determine the feasibility of using alternative wire sizes.
  • To ensure proper mating and unmating, follow the recommended mating and unmating forces, and use the correct tools and procedures. Avoid applying excessive force, which can damage the connector or its components. Refer to the datasheet or Molex's application notes for guidance on proper mating and unmating techniques.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

87715-9202 Overview

Use the download button to access the 87715-9202 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 87715, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
