The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 87715-9208 connector is designed to withstand vibrations and is suitable for use in high-vibration applications. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
The operating temperature range for the 87715-9208 connector is -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
Yes, the 87715-9208 connector is designed to be used in harsh environments and is resistant to moisture, dust, and other contaminants. However, it's essential to follow proper sealing and protection procedures to ensure the connector remains reliable in these environments.
While the 87715-9208 connector is designed for use with 20 AWG wire, it can be used with other wire sizes. However, it's essential to consult the datasheet and follow proper wire stripping and termination procedures to ensure reliable connections.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
87715-9208 Overview

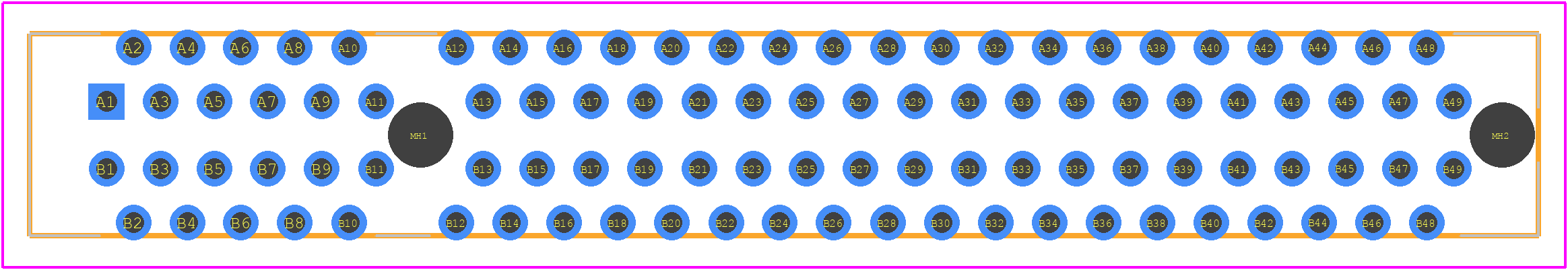

Use the download button to access the 87715-9208 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 87715,
or try a keyword search, such as Headers and Edge Type Connectors
About Molex
Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
