87715-9300 - Molex

Description: PCI Express / PCI Connectors PCI Express EdgeCard 164ckt Ny46 BlkPhBr

Download 87715-9300 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
87715-9300 - Molex - PCB symbol
click to zoom
PCB Footprints

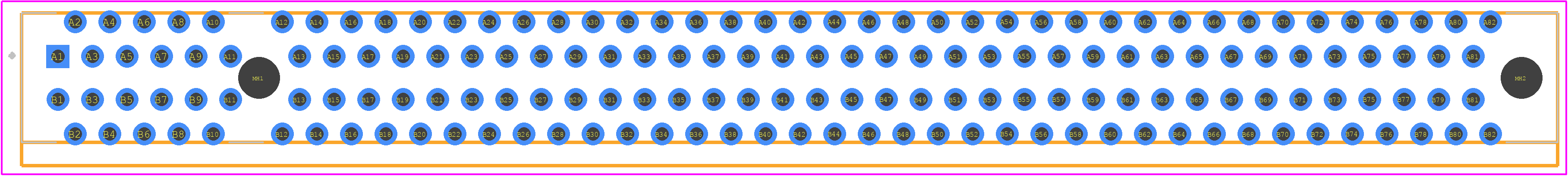

87715-9300 - Molex PCB footprint - Other - Other - 87715-9300-2
click to zoom
3D Models
87715-9300 - Molex - 3D model - Other - 87715-9300-2
click to zoom

87715-9300 Details

  • Manufacturer Part Number:

    87715-9300

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LEAD FREE

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Additional Feature:

    PANEL MOUNTABLE

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.348 inch

  • Body Depth:

    0.441 inch

  • Body Length:

    3.504 inch

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BELLOWED TYPE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.039 inch

  • Mating Contact Row Spacing:

    0.071 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    4

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2 mm

  • Polarization Key:

    POLAR PIN POSITION

  • Rated Current (Signal):

    1.1 A

  • Terminal Pitch:

    1 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    164

  • UL Flammability Code:

    94V-0

87715-9300 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 87715-9300 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The 87715-9300 connector has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to follow proper sealing and installation procedures to ensure the connector remains protected in harsh environments.
  • The 87715-9300 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
  • While the 87715-9300 connector is designed for use with AWG 20-24 wires, it may be possible to use it with other wire sizes. However, it's essential to consult with Molex or a qualified engineer to ensure the connector can accommodate the desired wire size and meet the application's requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

87715-9300 Overview

Use the download button to access the 87715-9300 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 87715, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
