87760-3616 - Molex

Description: Headers & Wire Housings 2MM HDR. 36 CKT. R/A Selective Gold

Download 87760-3616 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
87760-3616 - Molex - PCB symbol
click to zoom
PCB Footprints

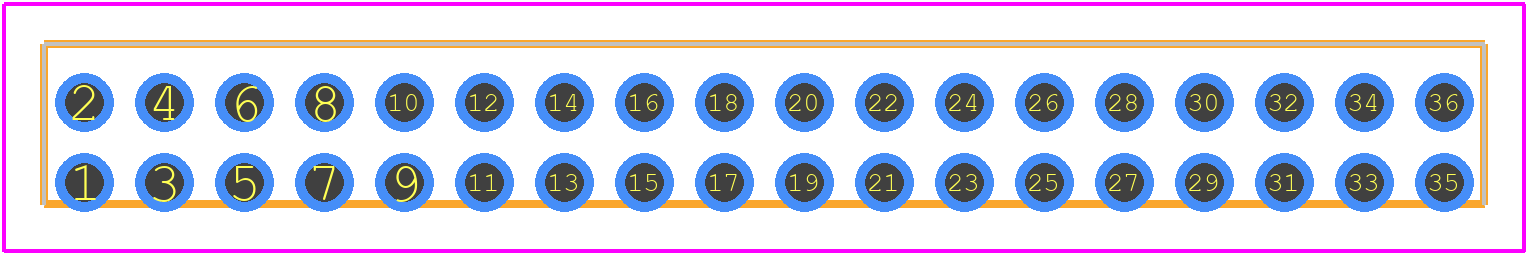

87760-3616 - Molex PCB footprint - Other - Other - 87760-3616
click to zoom
3D Models
87760-3616 - Molex - 3D model - Other - 87760-3616
click to zoom

87760-3616 Details

  • Manufacturer Part Number:

    87760-3616

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Indonesia, Malaysia, Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    TRAY PACKAGE

  • Body Breadth:

    0.169 inch

  • Body Depth:

    0.157 inch

  • Body Length:

    1.417 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYAMIDE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.079 inch

  • Mating Contact Row Spacing:

    0.079 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2 mm

  • Plating Thickness:

    15u inch

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.102 inch

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    36

  • UL Flammability Code:

    94V-0
