- Part Number 87782-2202
- Manufacturer Molex
- Pin Count 206
- Part Category Connector
- Package Category Other

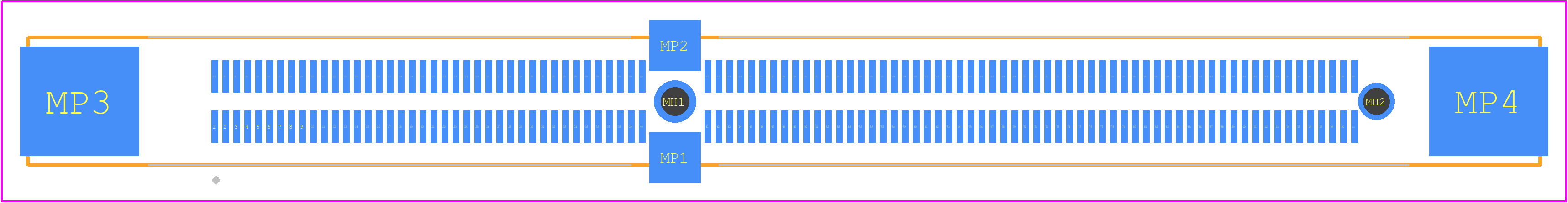

- Footprint Name Other - 87782-2202-3
- Released Date Jan 11, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
87782-2202 Details
-
Manufacturer Part Number:
87782-2202
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Country Of Origin:
Singapore
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
Molex
-
YTEOL:
0
-
Additional Feature:
LATCHED
-
Board Mounting Option:
PEG
87782-2202 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 87782-2202 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
-
The 87782-2202 connector has a IP20 rating, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor or harsh environment applications, it's essential to take additional measures to ensure the connector is properly sealed and protected from the elements.
-
While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with the 87782-2202 connector. However, it's essential to ensure the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or electrical issues.
-
Yes, when designing the PCB layout, ensure that the connector's footprint is accurately represented, and the PCB material is compatible with the connector's soldering process. Additionally, consider the connector's height and width to ensure proper clearance and avoid any potential interference with other components.
