The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
Yes, the 87782-3003 connector is designed to withstand vibrations and is suitable for use in high-vibration environments.
The operating temperature range for the 87782-3003 connector is -40°C to 105°C (-40°F to 221°F).
Yes, the 87782-3003 connector is designed for automated assembly and can be used with pick-and-place machines.
The mating cycle life of the 87782-3003 connector is 500 cycles minimum.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
87782-3003 Overview

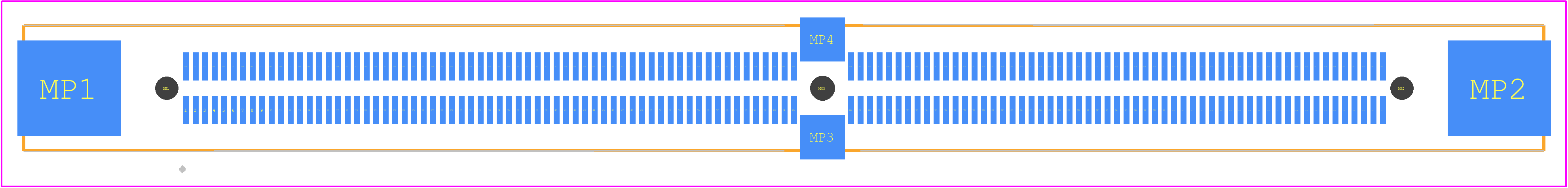

Use the download button to access the 87782-3003 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 87782,
or try a keyword search, such as Headers and Edge Type Connectors
About Molex
Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
