87797-0400 - Molex

Description: Headers & Wire Housings 2.54MM C-grid DRDW DRDW T/H Hdr 40ckt

Download 87797-0400 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
87797-0400 - Molex - PCB symbol
click to zoom
PCB Footprints

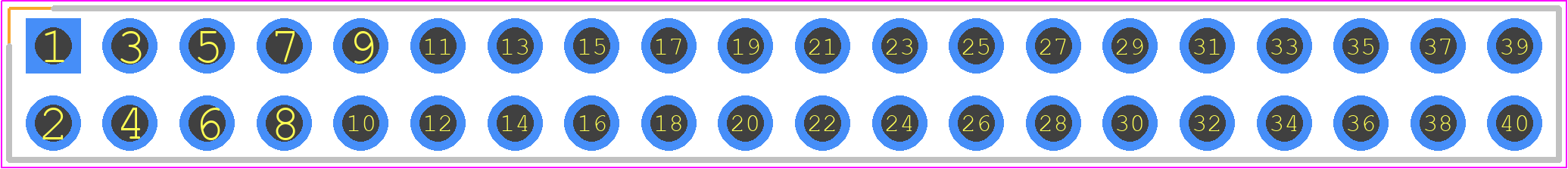

87797-0400 - Molex PCB footprint - Header, Vertical - Header, Vertical - 87797-0400
click to zoom
3D Models
87797-0400 - Molex - 3D model - Header, Vertical - 87797-0400
click to zoom

87797-0400 Details

  • Manufacturer Part Number:

    87797-0400

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Indonesia, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Body Breadth:

    0.197 inch

  • Body Depth:

    0.5 inch

  • Body Length:

    2 inch

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    15u inch

  • Reference Standard:

    UL

  • Terminal Length:

    0.11 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

87797-0400 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 87797-0400 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure and functional.
  • The 87797-0400 connector is designed for indoor use and is not rated for outdoor or harsh environmental use. If you need a connector for outdoor or harsh environmental use, consider using a connector with a higher IP rating or specialized environmental protection.
  • While the 87797-0400 connector is designed for 24 AWG wire, it can accommodate wire sizes between 20 AWG and 26 AWG. However, using wire sizes outside this range may affect the connector's performance and reliability.
  • The 87797-0400 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). Exceeding this temperature range may affect the connector's performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

87797-0400 Overview

Use the download button to access the 87797-0400 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 87797, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
