- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 87831-2035
- Part Number 87831-2035
- Manufacturer Molex
- Pin Count 20
- Part Category Connector
- Package Category Other

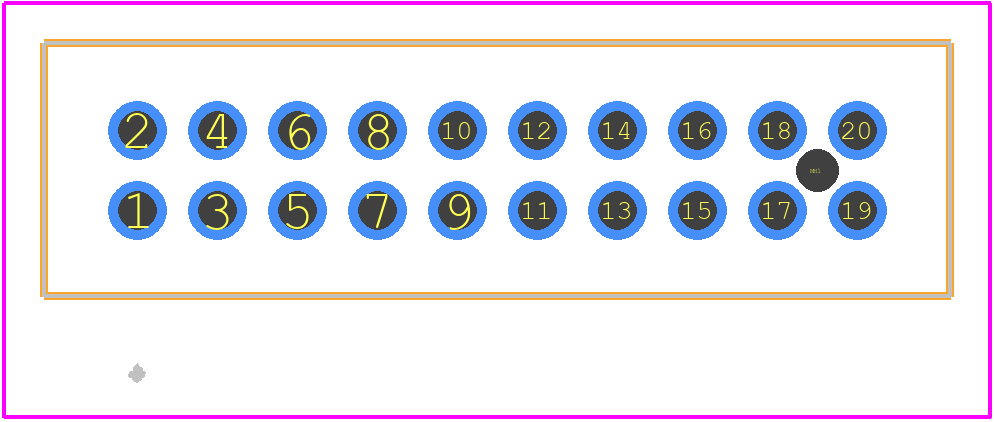

- Footprint Name Other - 87831-2035-3
- Released Date Feb 28, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
87831-2035 Details
-
Manufacturer Part Number:
87831-2035
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Malaysia, Singapore
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
19 Weeks
-
Manufacturer:
Molex
-
YTEOL:
8
-
Board Mounting Option:
PEG
87831-2035 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 87831-2035 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
-
The 87831-2035 connector has a IP67 rating, which means it can withstand exposure to dust and water immersion up to 1 meter for 30 minutes. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
-
While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 87831-2035 connector. However, it's essential to ensure the wire size is compatible with the connector's terminal design and that the wire can withstand the maximum current rating.
-
The 87831-2035 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
Trust Checks
Expert Contribution
System Verified
Community Approved
87831-2035 Overview
Use the download button to access the 87831-2035 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 87831,
or try a keyword search, such as Headers and Edge Type Connectors
About Molex
Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
