87831-4010 - Molex

Description: Headers & Wire Housings MGrid Hdr Shrd Vt .3 hrd Vt .38AuLF 40Ckt

Download 87831-4010 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
87831-4010 - Molex - PCB symbol
click to zoom

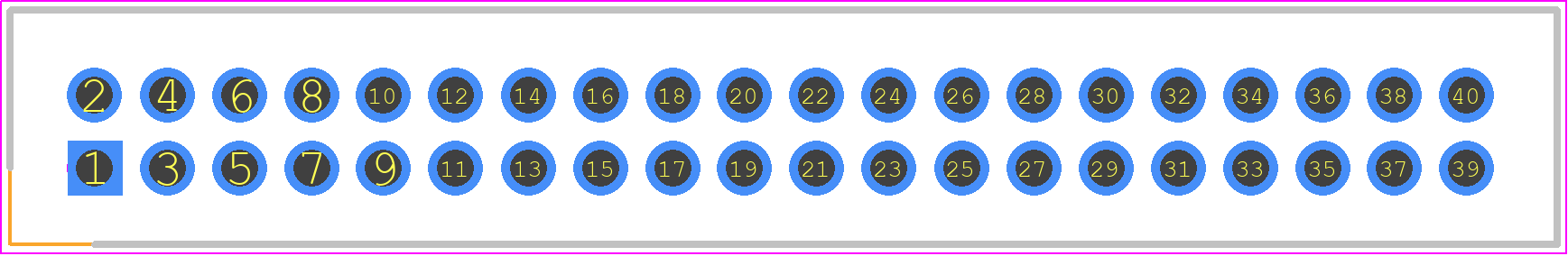

PCB Footprints
87831-4010 - Molex PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - 87831-4010
click to zoom
3D Models
87831-4010 - Molex - 3D model - Header, Shrouded - Straight PTH Box - 87831-4010
click to zoom

87831-4010 Details

  • Manufacturer Part Number:

    87831-4010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.248 inch

  • Body Depth:

    0.252 inch

  • Body Length:

    1.68 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Durability:

    100 Cycles

  • Filter Feature:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED NYLON

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.078 inch

  • Mating Contact Row Spacing:

    0.078 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2 mm

  • Plating Thickness:

    15u inch

  • Polarization Key:

    POLARIZATION NOTCH

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.138 inch

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

87831-4010 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 87831-4010 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 87831-4010 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating. Additionally, the connector's materials and plating may not be suitable for extreme environmental conditions, such as high temperatures, salt spray, or UV exposure.
  • While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 87831-4010 connector. However, it's essential to ensure the wire size and insulation meet the connector's specifications and that the wire is properly stripped and terminated to prevent damage or electrical issues.
  • Yes, it's essential to follow proper PCB design and layout guidelines for the 87831-4010 connector. Ensure the PCB footprint matches the connector's dimensions, and provide adequate clearance around the connector for easy assembly and disassembly. Additionally, consider the connector's height and orientation to ensure proper mating and unmating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

87831-4010 Overview

Use the download button to access the 87831-4010 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 87831, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
