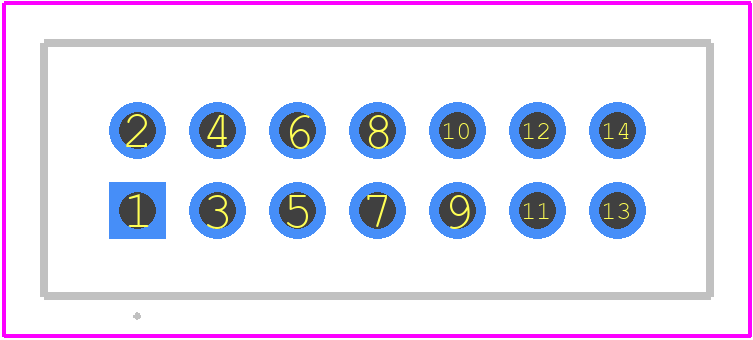

87831-5554 - Molex PCB footprint - Other - Other - 87831-5554-2
click to zoom
3D Models
87831-5554 - Molex - 3D model - Other - 87831-5554-2
click to zoom

87831-5554 Details

  • Manufacturer Part Number:

    87831-5554

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    27 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Body Breadth:

    0.248 inch

  • Body Depth:

    0.252 inch

  • Body Length:

    0.656 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    40 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Durability:

    100 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    Black

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.08 inch

  • Mating Contact Row Spacing:

    0.079 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2 mm

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.1 inch

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    14

  • UL Flammability Code:

    94V-0

87831-5554 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the Molex 87831-5554 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz). However, it's crucial to ensure proper mounting and secure the connector to the PCB or chassis to prevent damage or disconnection.
  • The Molex 87831-5554 connector has a rating of IP67, which means it can withstand temporary immersion in water (up to 1m for 30 minutes) and is protected against dust ingress. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
  • The Molex 87831-5554 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate other wire sizes with proper termination and strain relief. However, it's crucial to consult with Molex or a qualified engineer to ensure the connector can handle the desired wire size and application requirements.
