87914-1026 - Molex

Description: Headers & Wire Housings 2.54mm DRSW Hdr TH 10Ckt

Download 87914-1026 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
87914-1026 - Molex - PCB symbol
click to zoom
PCB Footprints

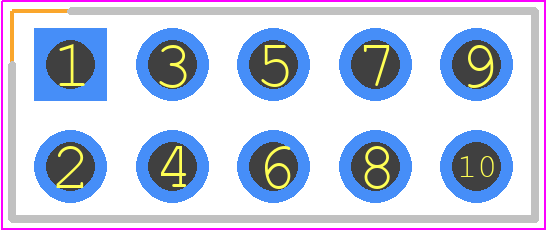

87914-1026 - Molex PCB footprint - Header, Vertical - Header, Vertical - 87914-1026
click to zoom
3D Models
87914-1026 - Molex - 3D model - Header, Vertical - 87914-1026
click to zoom

87914-1026 Details

  • Manufacturer Part Number:

    87914-1026

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Indonesia, Malaysia, Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    9

  • Body Breadth:

    0.196 inch

  • Body Depth:

    0.09 inch

  • Body Length:

    0.5 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Dielectric Withstanding Voltage:

    500VAC V

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    98u inch

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.117 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

87914-1026 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 87914-1026 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The 87914-1026 connector has a IP67 rating, which means it can withstand temporary immersion in water and is suitable for outdoor or harsh environment applications. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
  • While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 87914-1026 connector. However, it's essential to ensure the wire size is compatible with the connector's terminal design and to follow proper wire stripping and termination procedures.
  • Yes, it's essential to follow proper PCB layout considerations for the 87914-1026 connector, including maintaining a minimum clearance of 1.5 mm between the connector and other components, and ensuring the PCB material can withstand the connector's operating temperature range.
