87914-1616 - Molex

Description: Headers & Wire Housings C-Grid DRSW TH Hdr. DRSW TH Hdr. 16ckt

Download 87914-1616 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
87914-1616 - Molex - PCB symbol
click to zoom
PCB Footprints

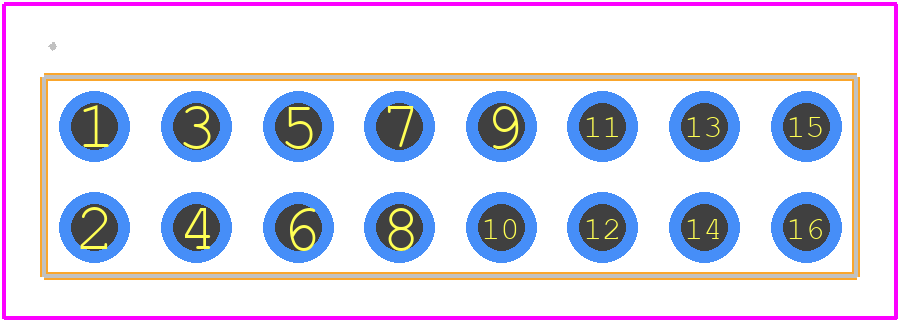

87914-1616 - Molex PCB footprint - Other - Other - 87914-1616-1
click to zoom
3D Models
87914-1616 - Molex - 3D model - Other - 87914-1616-1
click to zoom

87914-1616 Details

  • Manufacturer Part Number:

    87914-1616

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Indonesia, Malaysia, Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    9.1

  • Body Breadth:

    0.196 inch

  • Body Depth:

    0.09 inch

  • Body Length:

    0.8 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Dielectric Withstanding Voltage:

    500VAC V

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    98u inch

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.11 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

87914-1616 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 87914-1616 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The 87914-1616 connector has a IP67 rating, which means it's protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's not designed for prolonged exposure to harsh outdoor environments. If you need a connector for outdoor use, consider using a connector with a higher IP rating or additional environmental protection.
  • While the datasheet recommends using AWG 20-24 wires, you can use wires with smaller or larger diameters. However, you'll need to ensure the wire insulation is compatible with the connector's wire crimping system, and the wire size doesn't exceed the connector's maximum wire diameter specification.
  • To ensure reliable connections and prevent wire damage, follow the recommended wire stripping and crimping procedures, and use the correct crimping tool. It's also essential to inspect the crimped connections for signs of damage or poor crimping.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

87914-1616 Overview

Use the download button to access the 87914-1616 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 87914, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
