Qorvo provides a recommended PCB layout guide in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to ensure optimal performance and minimize electromagnetic interference (EMI).
The biasing circuit should be designed to provide a stable voltage supply to the device. Qorvo recommends using a low-dropout regulator (LDO) with a high power supply rejection ratio (PSRR) to minimize noise and ensure stable operation. Additionally, a decoupling capacitor should be placed close to the device to filter out high-frequency noise.
While the datasheet specifies an operating temperature range of -40°C to 85°C, Qorvo recommends derating the device's performance at temperatures above 70°C to ensure reliable operation. It's essential to consider the thermal management of the system to prevent overheating and ensure optimal performance.
Qorvo provides a troubleshooting guide in their application note AN-2172, which covers common issues and their solutions. Additionally, engineers can use simulation tools and modeling techniques to identify and resolve issues related to impedance matching, biasing, and layout.
The 885010 is a sensitive device that requires proper electrostatic discharge (ESD) protection during handling and assembly. Qorvo recommends following standard ESD handling procedures, such as using ESD-safe workstations, wrist straps, and packaging materials to prevent damage to the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
885010 Overview

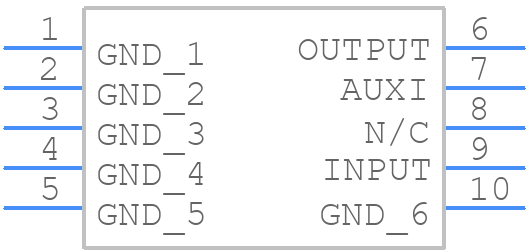

Use the download button to access the 885010 schematic symbol, PCB footprint, and 3D model.
