88SE9230A1-NAA2C000 footprint, schematic symbol and 3D model by Marvell

Symbol

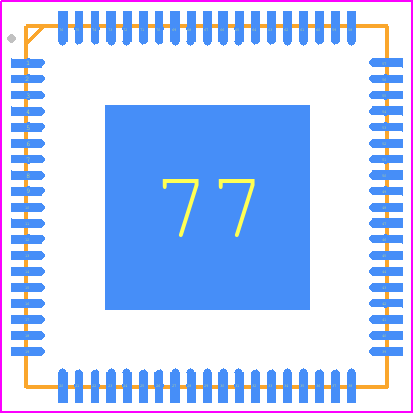

PCB Footprints

3D Models

88SE9230A1-NAA2C000 Details

Marvell provides a reference design guide that includes recommended PCB layout guidelines for optimal performance, thermal management, and signal integrity. It's essential to follow these guidelines to ensure reliable operation and minimize signal degradation.
Marvell provides a SATA interface troubleshooting guide that covers common issues, error codes, and debugging techniques. Additionally, engineers can use tools like SATA analyzers and logic analyzers to debug and diagnose issues.
The 88SE9230A1-NAA2C000 has a maximum junction temperature of 125°C. Engineers should ensure proper thermal management by using heat sinks, thermal pads, and thermal interfaces to maintain a safe operating temperature. Marvell provides thermal design guidelines and thermal models to aid in thermal management.
Marvell provides a firmware development kit (FDK) that includes tools, documentation, and sample code to help engineers optimize the firmware for their specific application. Engineers can also consult the Marvell firmware development guide for guidance on customizing the firmware.
The 88SE9230A1-NAA2C000 has multiple power domains and requires careful power management to minimize power consumption and heat generation. Engineers should follow Marvell's power management guidelines and use tools like power analyzers to optimize power consumption.
