Wurth Elektronik provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, signal integrity, and thermal management.
The 890324022017CS has a thermal pad on the bottom side, which should be connected to a solid ground plane on the PCB to dissipate heat efficiently. Additionally, ensure good airflow and consider using thermal interface materials or heat sinks if necessary.
Wurth Elektronik recommends following the JEDEC J-STD-020 standard for soldering profiles. A peak temperature of 240°C to 245°C is recommended, with a dwell time of 30-60 seconds. Use a soldering iron with a temperature-controlled tip and a flux suitable for lead-free soldering.
To ensure EMC, follow Wurth Elektronik's guidelines for PCB layout, component placement, and shielding. Use a multi-layer PCB with a solid ground plane, and consider adding shielding cans or metal enclosures to minimize electromagnetic radiation.
The 890324022017CS is designed to meet the reliability and durability requirements of automotive and industrial applications. It's built with high-quality materials and undergoes rigorous testing to ensure a long lifespan. However, the actual reliability and durability will depend on the specific application, operating conditions, and environmental factors.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
890324022017CS Overview

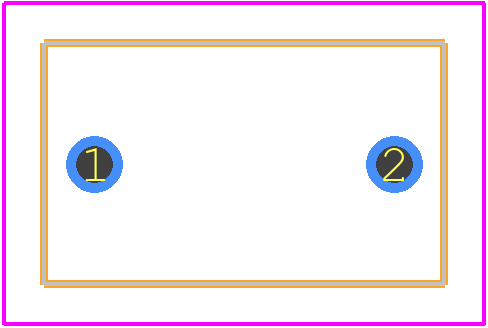

Use the download button to access the 890324022017CS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 89032,
or try a keyword search, such as Film Capacitors
