8930E-040-178MS-F - KEL CORPORATION

Description: 1.27mm Pitch, 2 piece, IDC for 0.635mm FC Connector, Low profile type, Plug (PCB side Connector), SMT, 40 pin

Download 8930E-040-178MS-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
8930E-040-178MS-F - KEL CORPORATION - PCB symbol
click to zoom
PCB Footprints

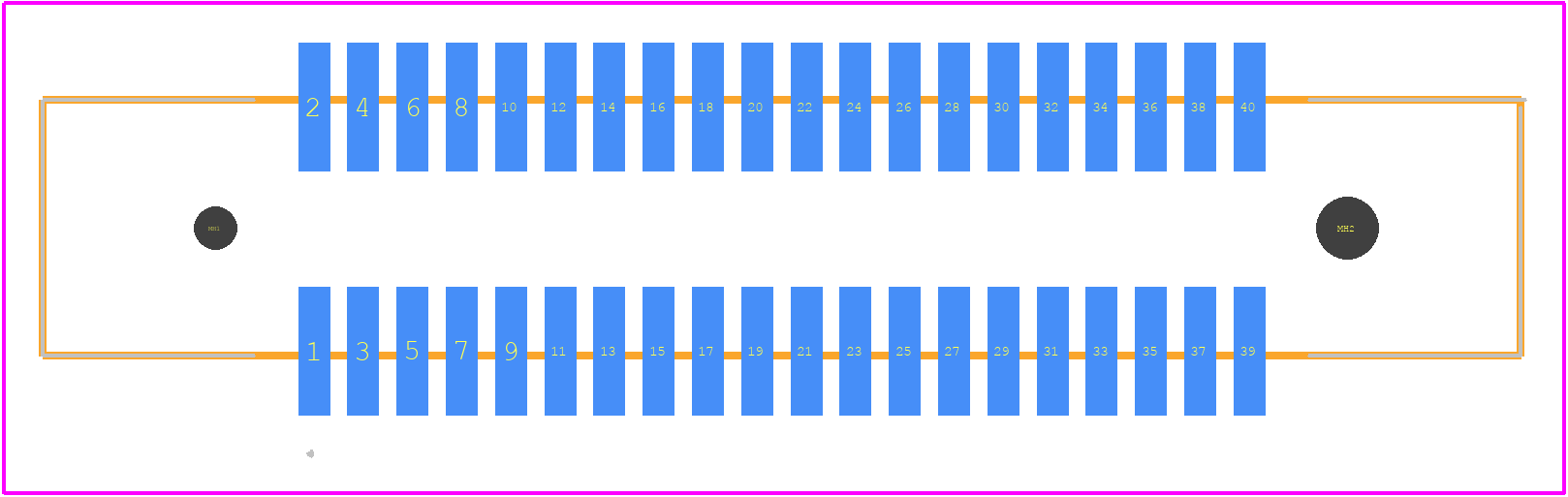

8930E-040-178MS-F - KEL CORPORATION PCB footprint - Other - Other - 8930E-040-178MS-F-2
click to zoom
3D Models
8930E-040-178MS-F - KEL CORPORATION - 3D model - Other - 8930E-040-178MS-F-2
click to zoom

8930E-040-178MS-F Details

  • Manufacturer Part Number:

    8930E-040-178MS-F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    KEL Corporation

  • YTEOL:

    9

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD OVER NICKEL

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

8930E-040-178MS-F Frequently Asked Questions (FAQs)

  • The recommended storage condition for the 8930E-040-178MS-F is in a dry, cool place with a temperature range of 10°C to 30°C (50°F to 86°F) and humidity below 60%.
  • Yes, the 8930E-040-178MS-F is designed to withstand high-vibration environments. However, it's recommended to consult with KEL Corporation's application engineers to determine the specific vibration requirements and ensure the component meets those needs.
  • Yes, the 8930E-040-178MS-F is compatible with lead-free soldering processes. It's designed to meet the requirements of RoHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic Equipment) directives.
  • The typical lead time for delivery of the 8930E-040-178MS-F varies depending on the quantity and availability. It's recommended to contact KEL Corporation's sales team or authorized distributors for the most up-to-date lead time information.
  • Yes, KEL Corporation offers customization options for the 8930E-040-178MS-F. Engineers can work with KEL Corporation's application engineers to modify the component's design, materials, or performance characteristics to meet specific application requirements.
