8931E-050-178S-F - KEL CORPORATION

Description: Connector,Ribbon cable mount,Plug,Straig KEL Corporation 8931E Series, 1.27mm Pitch 50 Way 2 Row Straight PCB Header, Through Hole, Solder Termination

Download 8931E-050-178S-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
8931E-050-178S-F - KEL CORPORATION - PCB symbol
click to zoom
PCB Footprints

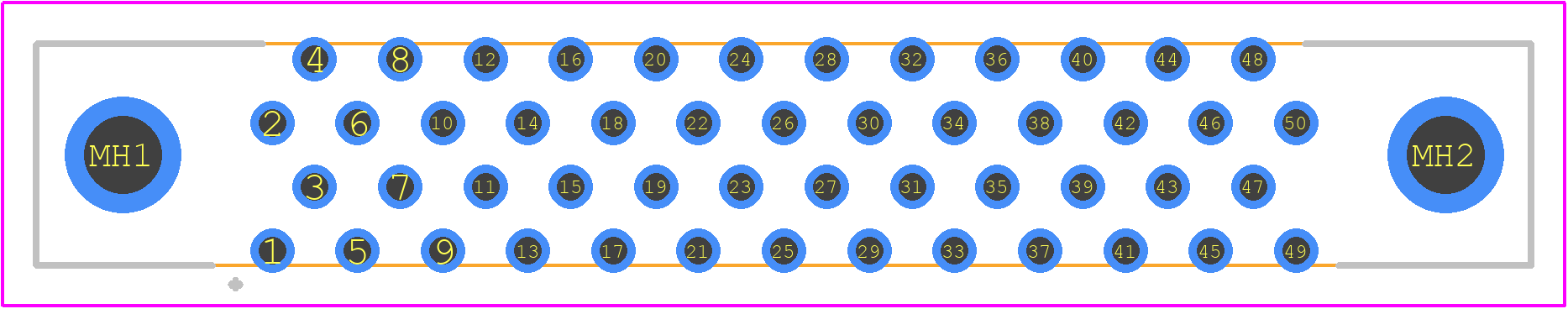

8931E-050-178S-F - KEL CORPORATION PCB footprint - Other - Other - 8931E-050-178S-F-1
click to zoom
3D Models
8931E-050-178S-F - KEL CORPORATION - 3D model - Other - 8931E-050-178S-F-1
click to zoom

8931E-050-178S-F Details

  • Manufacturer Part Number:

    8931E-050-178S-F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    KEL Corporation

  • YTEOL:

    10

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Body Breadth:

    0.26 inch

  • Body Depth:

    0.197 inch

  • Body Length:

    1.751 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    40 mΩ

  • Contact Style:

    CENTRONIC

  • Dielectric Withstanding Voltage:

    650VAC V

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BROWN

  • Insulator Material:

    GLASS FILLED POLYPHENYLENE SULFIDE

  • Mating Contact Pitch:

    0.05 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LATCH

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    4

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    1.905 mm

  • Packing Method:

    TUBE

  • Polarization Key:

    POLARIZATION NOTCH

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.118 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

8931E-050-178S-F Frequently Asked Questions (FAQs)

  • The recommended storage condition for the 8931E-050-178S-F is in a dry, cool place with a temperature range of 10°C to 30°C (50°F to 86°F) and humidity below 60%.
  • Yes, the 8931E-050-178S-F is designed to withstand high-vibration environments, but it's recommended to consult with KEL Corporation's application engineers to determine the specific vibration requirements and ensure the component meets those needs.
  • Yes, the 8931E-050-178S-F is compatible with lead-free soldering processes, but it's essential to follow the recommended soldering profile and temperature guidelines to ensure reliable assembly.
  • The typical lead time for delivery of the 8931E-050-178S-F varies depending on the quantity, region, and availability. It's recommended to contact KEL Corporation's sales team or authorized distributors for the most up-to-date lead time information.
  • Yes, the 8931E-050-178S-F requires proper handling and packaging to prevent damage during transportation and storage. It's recommended to follow KEL Corporation's guidelines for handling and packaging, which can be found in the product documentation or by contacting their technical support team.
