Description:Provides high-performance I/O expansion and switching functions between a PCIe upstream port and eleven downstream ports or peer-to-peer switching between downstream ports.
Renesas provides a recommended PCB layout guide in their application note (APL-AN-1201) which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
Renesas recommends following the thermal design guidelines, using a heat sink if necessary, and ensuring proper airflow around the device. Additionally, consider using thermal interface materials and following the recommended operating temperature range.
Renesas recommends using a low-ESR capacitor (e.g., ceramic or film capacitor) for CIN, with a value between 1-10uF. For COUT, a low-ESR capacitor with a value between 10-100uF is recommended. The specific values depend on the application's requirements and should be determined through simulation and testing.
Renesas recommends following the guidelines in their application note (APL-AN-1201) for EMI reduction, including using a solid ground plane, minimizing loop areas, and placing components to reduce radiation. Additionally, consider using EMI filters and shielding if necessary.
Renesas recommends using a pi-filter (L-C-L) or a common-mode choke for VIN filtering to reduce noise and ripple. For VOUT filtering, a simple RC filter or a more complex filter (e.g., LC filter) can be used, depending on the application's requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
89H48T12G2ZCBLG Overview

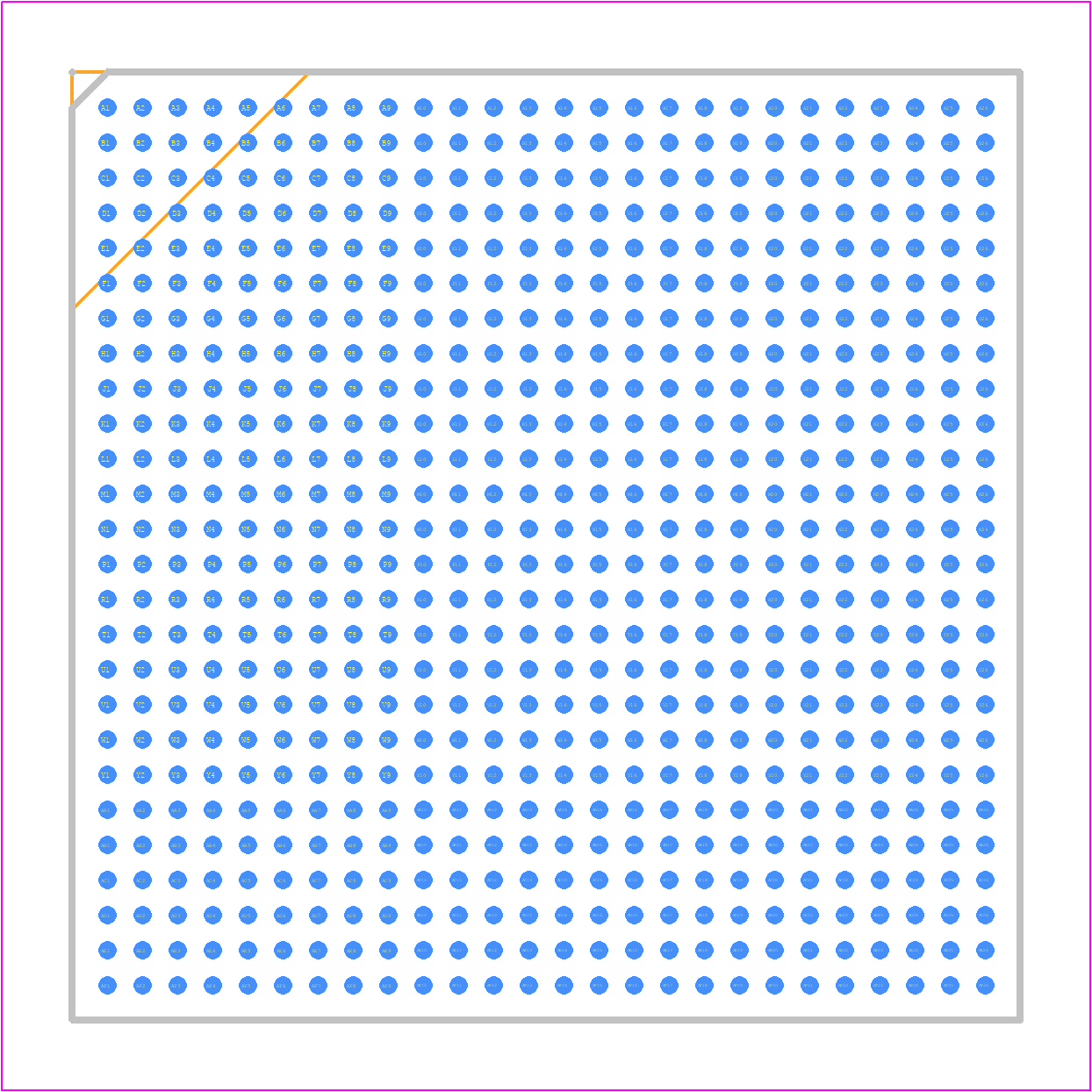

Use the download button to access the 89H48T12G2ZCBLG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 89H48,
or try a keyword search, such as Bus Controllers
