89H64H16G2ZCBLGI - Renesas Electronics

Description: Provides 64 PCIe Gen2 lanes and 16 ports of high-performance, deterministic system interconnect switching. All ports receive full line rate, non-blocking throughput for multiple traffic flows regardless of switch loading.

Download 89H64H16G2ZCBLGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
89H64H16G2ZCBLGI - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

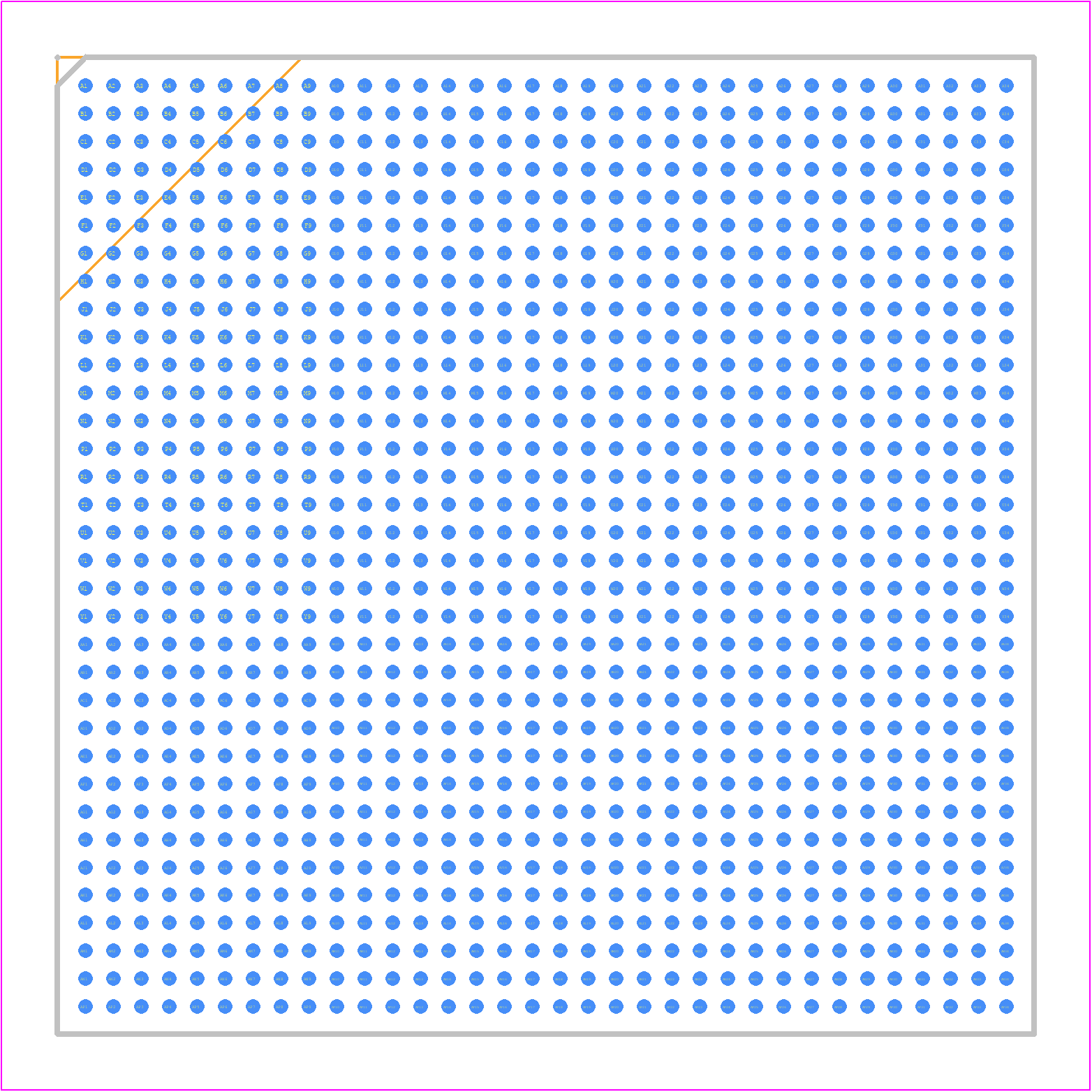

89H64H16G2ZCBLGI - Renesas Electronics PCB footprint - BGA - BGA - BLG1156
click to zoom
3D Models
89H64H16G2ZCBLGI - Renesas Electronics - 3D model - BGA - BLG1156
click to zoom

89H64H16G2ZCBLGI Details

  • Manufacturer Part Number:

    89H64H16G2ZCBLGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    FCBGA

  • Package Description:

    FCBGA-1156

  • Pin Count:

    1156

  • Manufacturer Package Code:

    BLG1156

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Bus Compatibility:

    I2C; ISA; PCI; SMBUS; VGA

  • Clock Frequency-Max:

    125 MHz

  • Data Transfer Rate-Max:

    64000 MBps

  • JESD-30 Code:

    S-PBGA-B1156

  • JESD-609 Code:

    e1

  • Length:

    35 mm

  • Moisture Sensitivity Level:

    4

  • Number of Terminals:

    1156

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA1156,34X34,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.42 mm

  • Supply Current-Max:

    6275 mA

  • Supply Voltage-Max:

    1.1 V

  • Supply Voltage-Min:

    0.9 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    35 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, PCI

89H64H16G2ZCBLGI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note 'Renesas Microcontrollers Thermal Design Guide' (document number: R01CL0005EJ0100). It's essential to follow this guide to ensure optimal thermal performance and prevent overheating issues.
  • Renesas provides a Secure Boot and Firmware Encryption guide (document number: R01AN4334EJ0100) that explains the process of implementing secure boot and firmware encryption using the 89H64H16G2ZCBLGI's built-in security features, such as the Trusted Secure IP (TSIP) and the Advanced Encryption Standard (AES).
  • Renesas recommends using their e² studio integrated development environment (IDE) and the E1/E20 emulator for debugging and troubleshooting. Additionally, they provide a debugging guide (document number: R01AN4335EJ0100) that covers common issues and troubleshooting techniques.
  • Renesas provides a Power Management Guide (document number: R01AN4336EJ0100) that explains how to optimize power consumption and reduce energy usage on the 89H64H16G2ZCBLGI. This includes techniques such as clock gating, voltage scaling, and sleep mode optimization.
  • Renesas provides a compatibility and interoperability guide (document number: R01AN4337EJ0100) that explains how to ensure compatibility and interoperability between the 89H64H16G2ZCBLGI and other Renesas devices, such as memory devices, interface devices, and power management devices.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

89H64H16G2ZCBLGI Overview

Use the download button to access the 89H64H16G2ZCBLGI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 89H64, or try a keyword search, such as Bus Controllers
