89HPES10T4G2ZABC - Renesas Electronics

Description: Provides high-performance I/O expansion and switching functions between a PCIe upstream port and three downstream ports or peer-to-peer switching between downstream ports.

Download 89HPES10T4G2ZABC Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 89HPES10T4G2ZABC model

Email notifications will be applied after download.

Send part feedback

Symbol

89HPES10T4G2ZABC - Renesas Electronics - PCB symbol

PCB Footprints

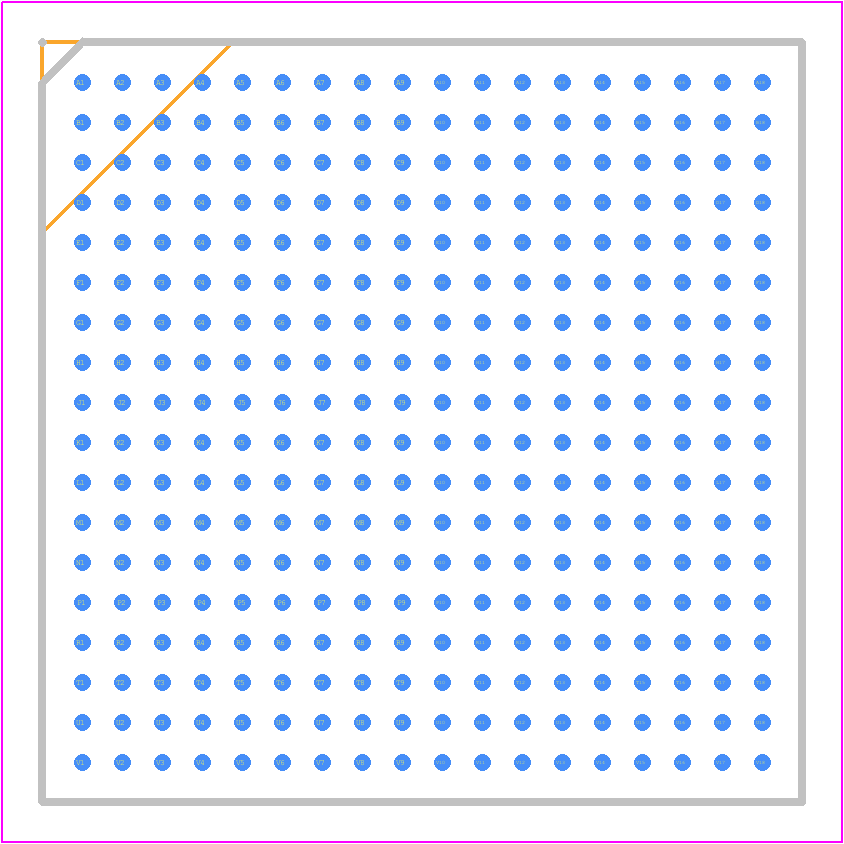

89HPES10T4G2ZABC - Renesas Electronics PCB footprint - BGA - BGA - 324_bga-2

3D Models

89HPES10T4G2ZABC - Renesas Electronics - 3D model - BGA - 324_bga-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for 89HPES10T4G2ZABC
Part Number 89HPES10T4G2ZABC
Manufacturer Renesas Electronics
Pin Count 324
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 324_bga-2
Released Date Jun 6, 2021
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

89HPES10T4G2ZABC Details

Manufacturer Part Number:
89HPES10T4G2ZABC
Brand Name:
Renesas
Pbfree Code:
No
Part Life Cycle Code:
Obsolete
Part Package Code:
CABGA
Pin Count:
324
Manufacturer Package Code:
BC324
HTS Code:
8542.31.00.30
Manufacturer:
Renesas Electronics Corporation
YTEOL:
0
Moisture Sensitivity Level:
3
Peak Reflow Temperature (Cel):
225
uPs/uCs/Peripheral ICs Type:
BUS CONTROLLER, PCI
