89HPES10T4G2ZBBCG8 - Renesas Electronics

Description: Provides high-performance I/O expansion and switching functions between a PCIe upstream port and three downstream ports or peer-to-peer switching between downstream ports.

Download 89HPES10T4G2ZBBCG8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
89HPES10T4G2ZBBCG8 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

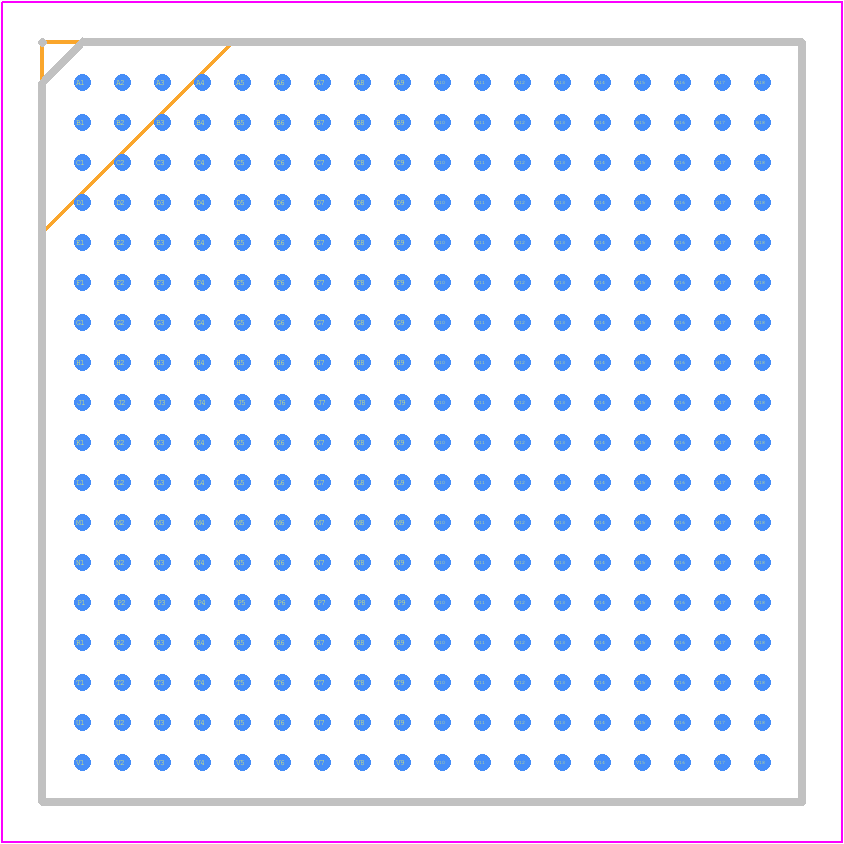

89HPES10T4G2ZBBCG8 - Renesas Electronics PCB footprint - BGA - BGA - BCG 324
click to zoom
3D Models
89HPES10T4G2ZBBCG8 - Renesas Electronics - 3D model - BGA - BCG 324
click to zoom

89HPES10T4G2ZBBCG8 Details

  • Manufacturer Part Number:

    89HPES10T4G2ZBBCG8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    CABGA

  • Package Description:

    CABGA-324

  • Pin Count:

    324

  • Manufacturer Package Code:

    BCG324

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    HAVING 125MHZ INPUT REFERENCE CLOCK FREQUENCY.

  • Bus Compatibility:

    SMBUS

  • Clock Frequency-Max:

    125 MHz

  • Data Transfer Rate-Max:

    12000 MBps

  • Drive Interface Standard:

    IEEE 1149.1

  • JESD-30 Code:

    S-PBGA-B324

  • Length:

    19 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    324

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.72 mm

  • Supply Voltage-Max:

    1.1 V

  • Supply Voltage-Min:

    0.9 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    19 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, PCI

89HPES10T4G2ZBBCG8 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) document, which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
  • Renesas recommends a specific power sequencing scheme to ensure proper device operation. This information can be found in the device's user manual or through direct consultation with Renesas support.
  • The recommended settings for the internal regulators can be found in the device's datasheet or user manual. Additionally, Renesas provides a configuration tool that can help with setting up the regulators for specific use cases.
  • Renesas provides a troubleshooting guide for I2C interface issues in their application note (APN) document. This guide covers common issues, such as bus contention, clock stretching, and slave address conflicts.
  • The maximum operating temperature range for the 89HPES10T4G2ZBBCG8 is -40°C to 125°C, as specified in the datasheet. However, it's essential to consider the device's thermal design and PCB layout to ensure reliable operation within this range.
