89HPES24T6G2ZBAL - Renesas Electronics

Description: Provides high-performance I/O expansion and switching functions between a PCIe upstream port and five downstream ports or peer-to-peer switching between downstream ports.

Download 89HPES24T6G2ZBAL Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 89HPES24T6G2ZBAL model

Email notifications will be applied after download.

Send part feedback

Symbol

89HPES24T6G2ZBAL - Renesas Electronics - PCB symbol

PCB Footprints

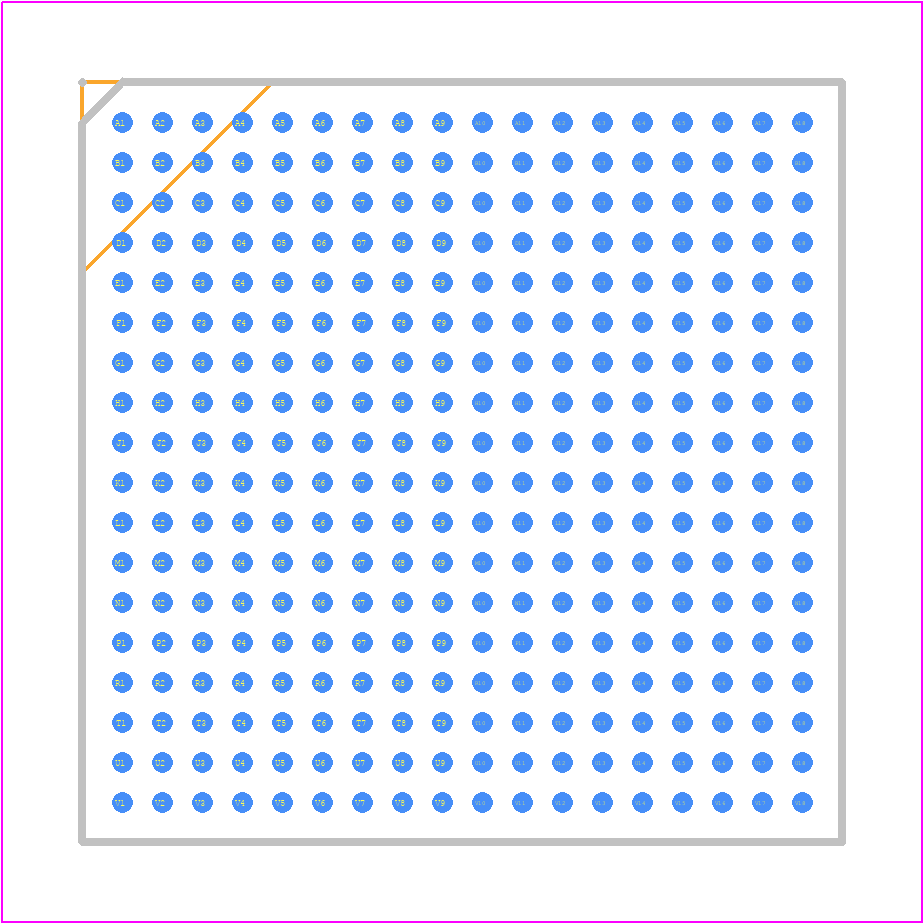

89HPES24T6G2ZBAL - Renesas Electronics PCB footprint - BGA - BGA - 324-Pin AL324/AR324

3D Models

89HPES24T6G2ZBAL - Renesas Electronics - 3D model - BGA - 324-Pin AL324/AR324

Datasheet Download Datasheet
Stock & Prices Price & Stock for 89HPES24T6G2ZBAL
Part Number 89HPES24T6G2ZBAL
Manufacturer Renesas Electronics
Pin Count 324
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 324-Pin AL324/AR324
Released Date Jun 6, 2021
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

89HPES24T6G2ZBAL Details

Manufacturer Part Number:
89HPES24T6G2ZBAL
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

89HPES24T6G2ZBAL Overview

Use the download button to access the 89HPES24T6G2ZBAL schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 89HPE, or try a keyword search, such as Bus Controllers
